Tri-Clamp Shotgun Condenser

Tri-Clamp ("shotgun" or "tube-in-tube") condensers function as heat exchangers

- Coolant enters via an 1.5" tri-clamp port circulating & cooling the metal tubing

- Vapor or solvent passes vertically through metal tubing

- Vapor/Gas condenses into a liquid and runs back down the metal tubing

- Solvent is reclaimed and placed back into a collection tank

In the distilling industry, these condensers are generally called Dephlegmator or Reflux Condensers

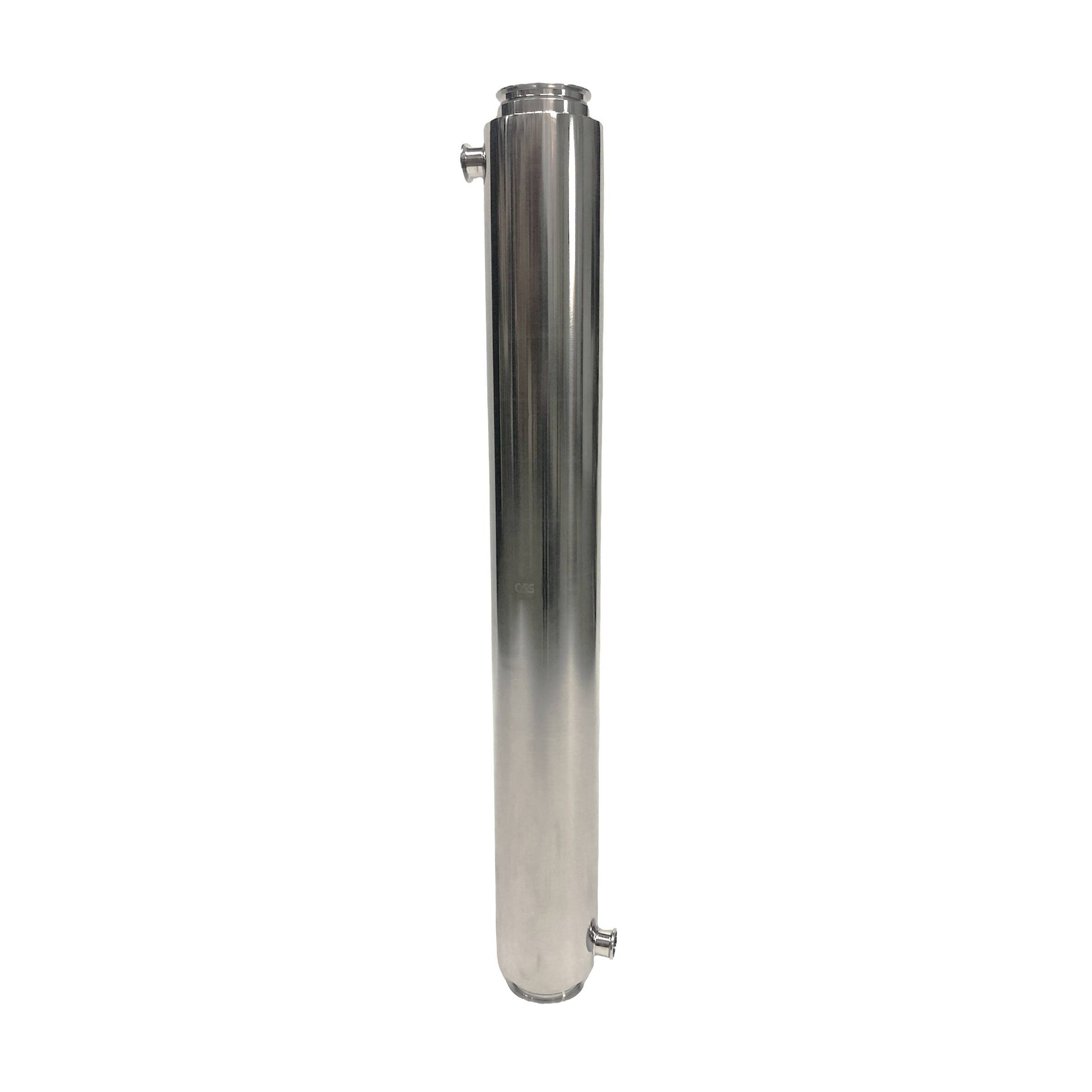

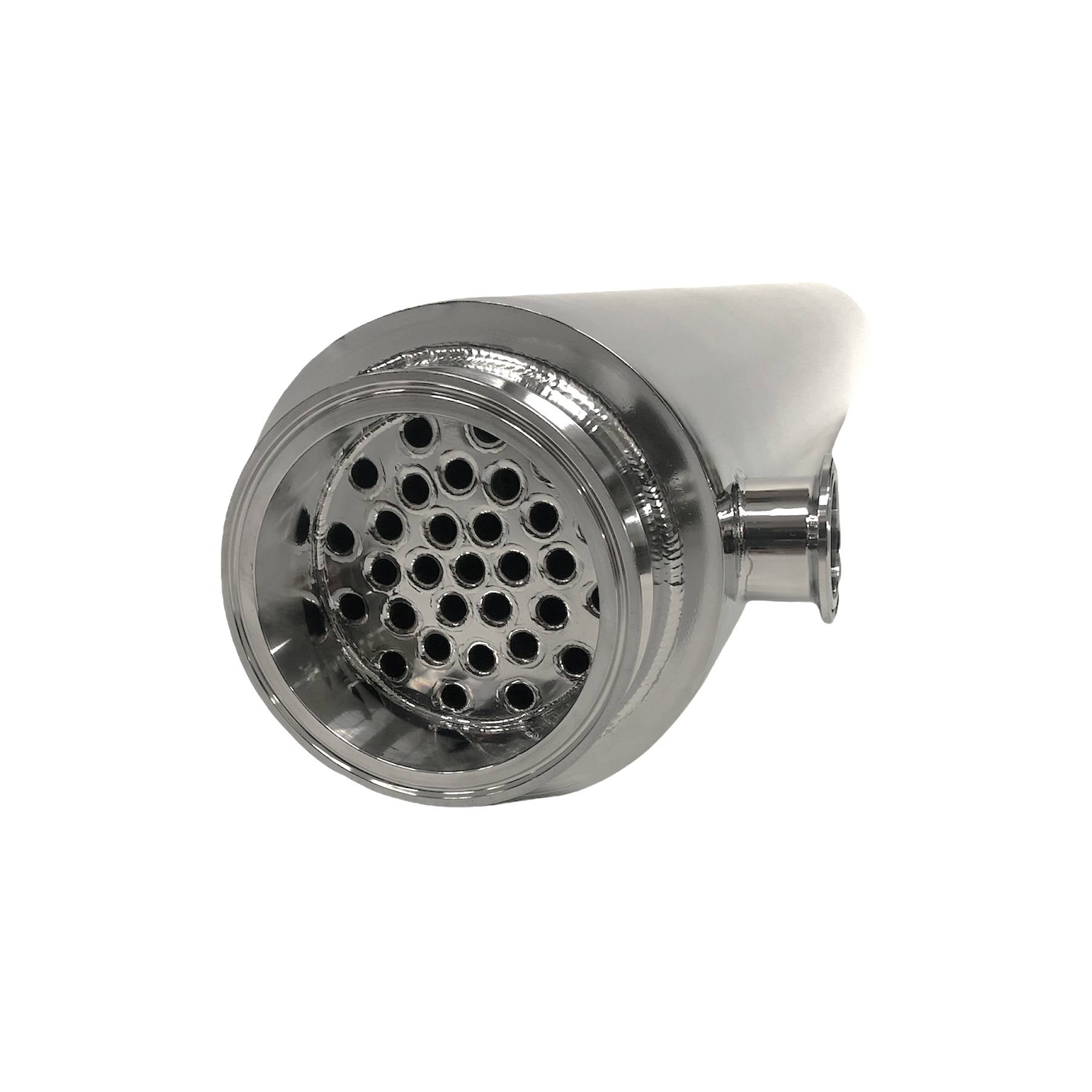

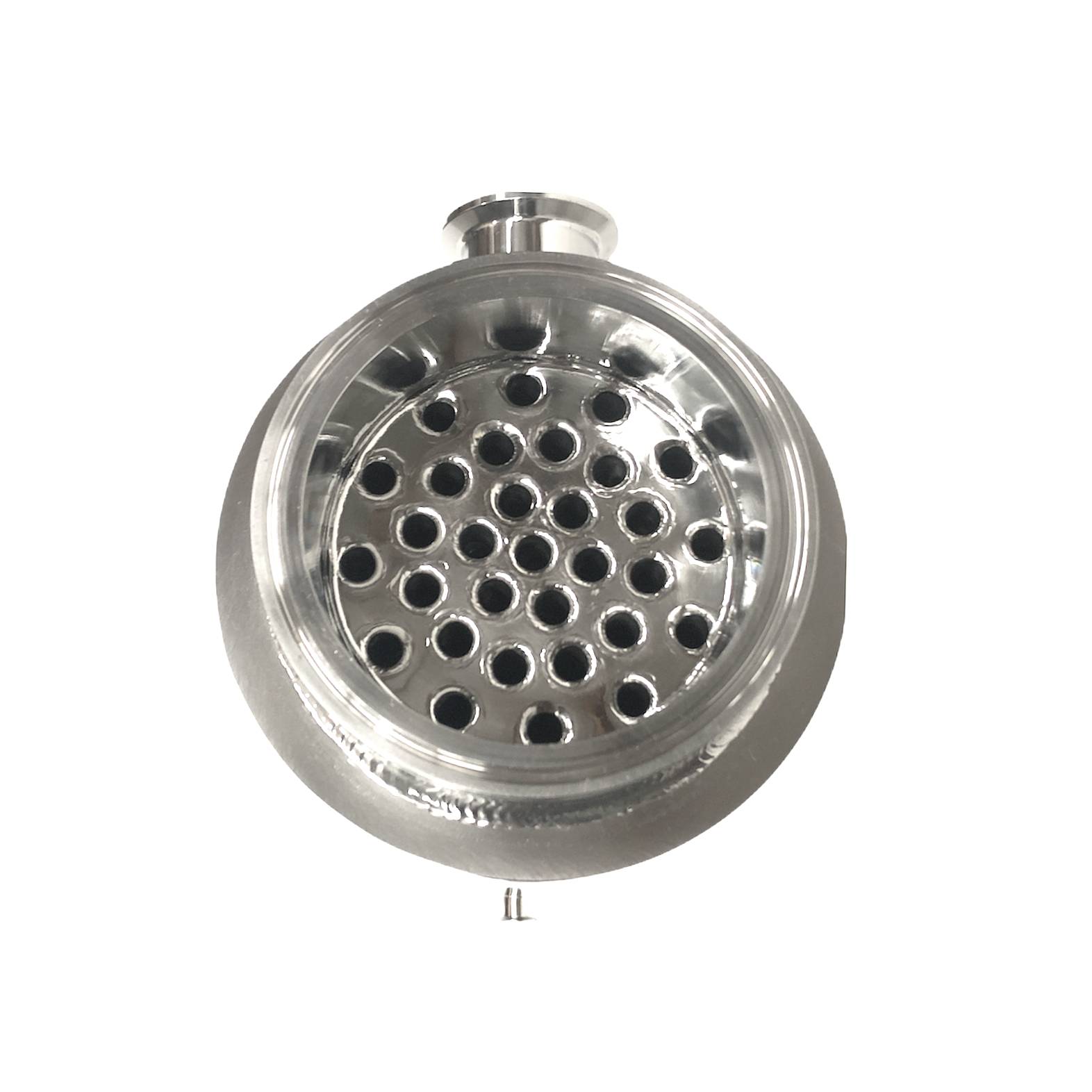

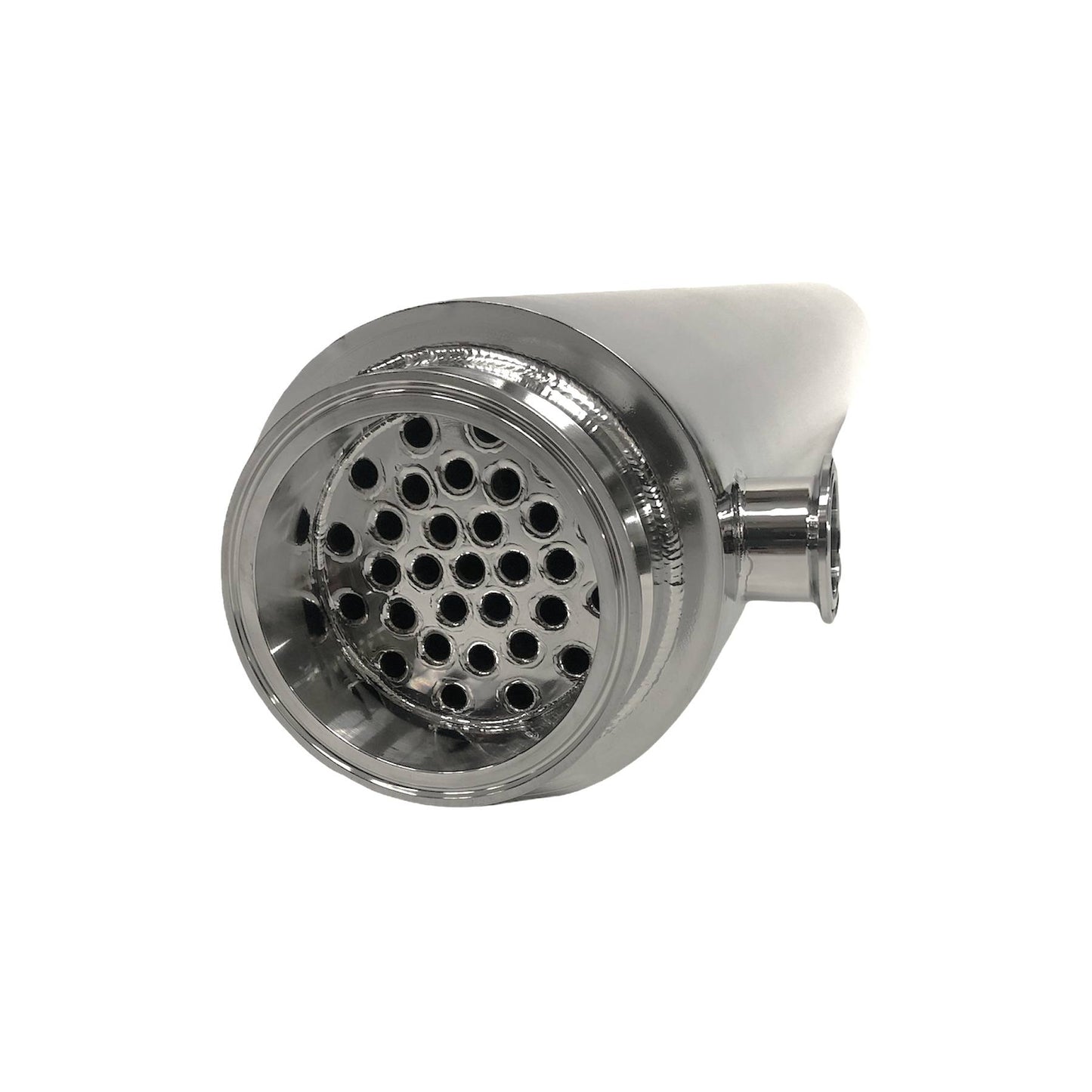

Tri-Clamp Shotgun Condenser - 4"x48"
- Comprised of 31x 3/8" tubes
- 1.5" Tri-Clamp Jacket Connections

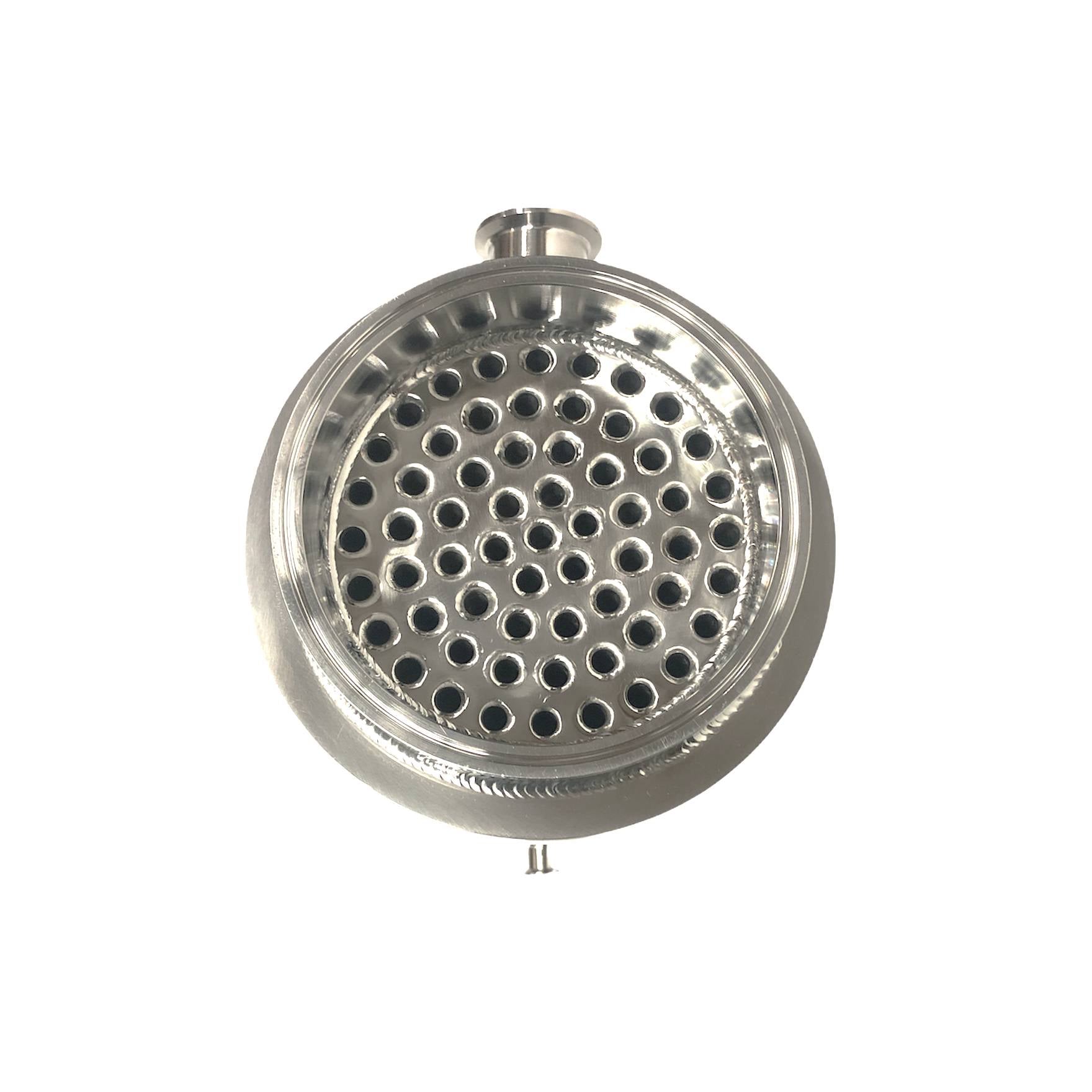

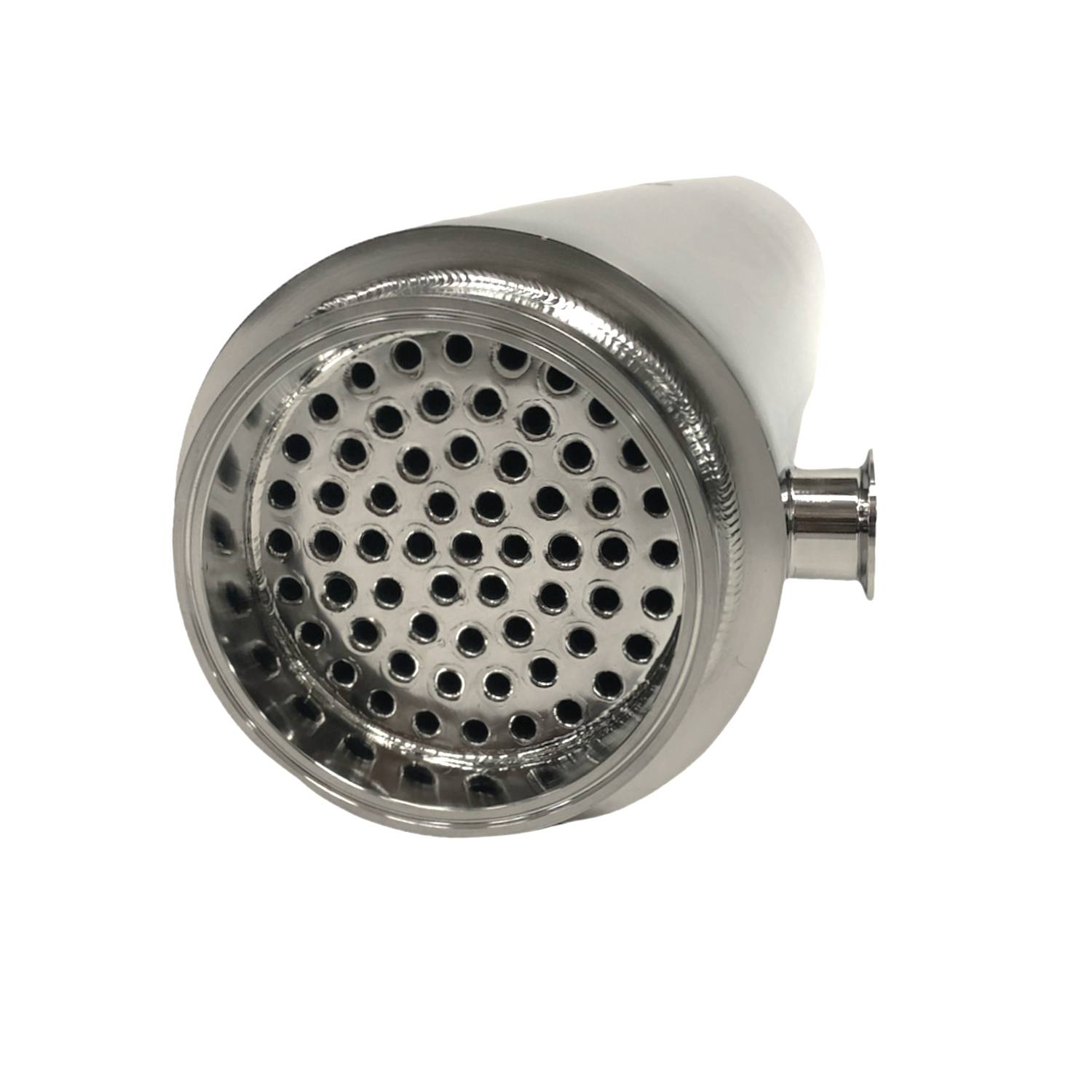

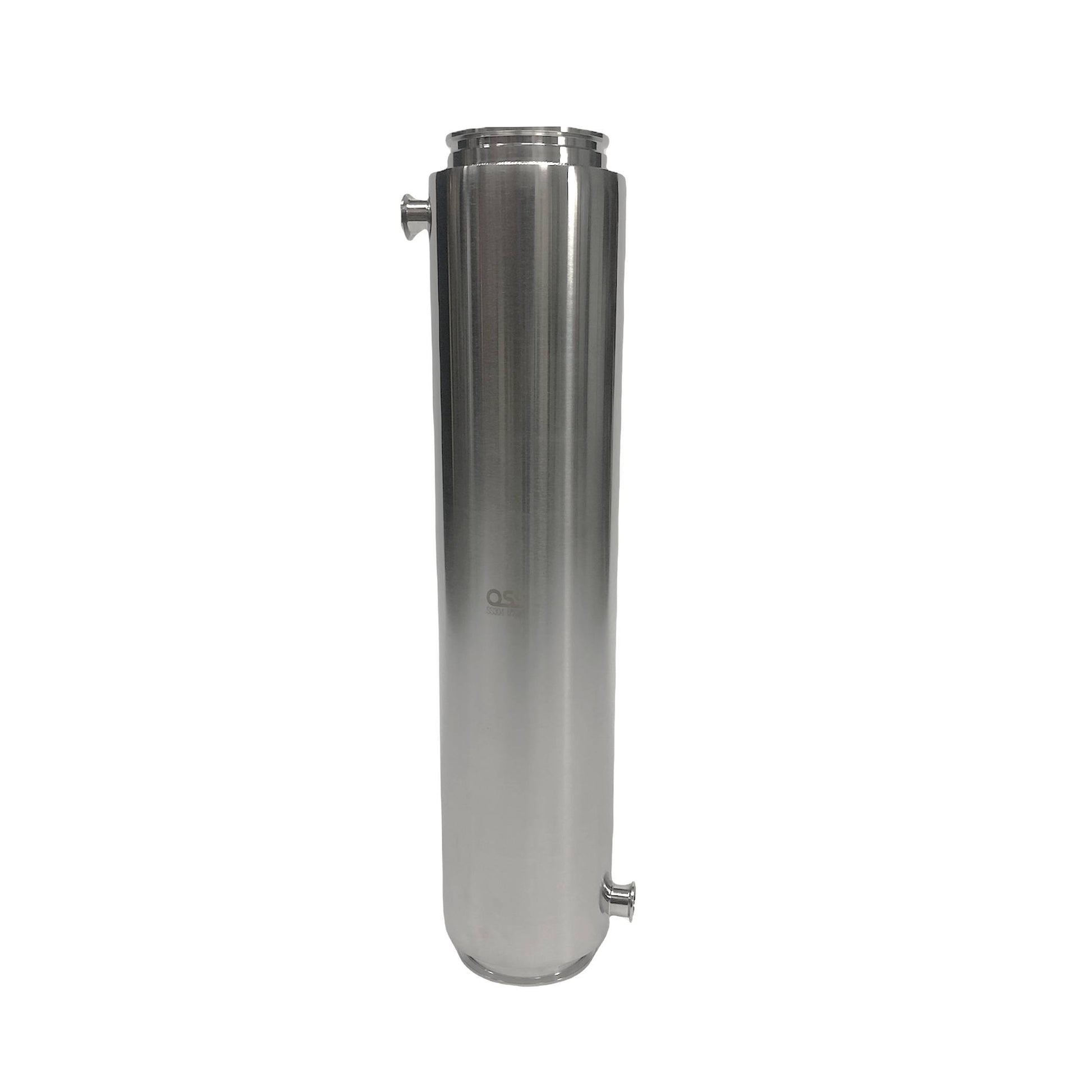

Tri-Clamp Shotgun Condenser - 6"x36"
- Comprised of 61x 3/8" tubes
- 1.5" Tri-Clamp Jacket Connections
