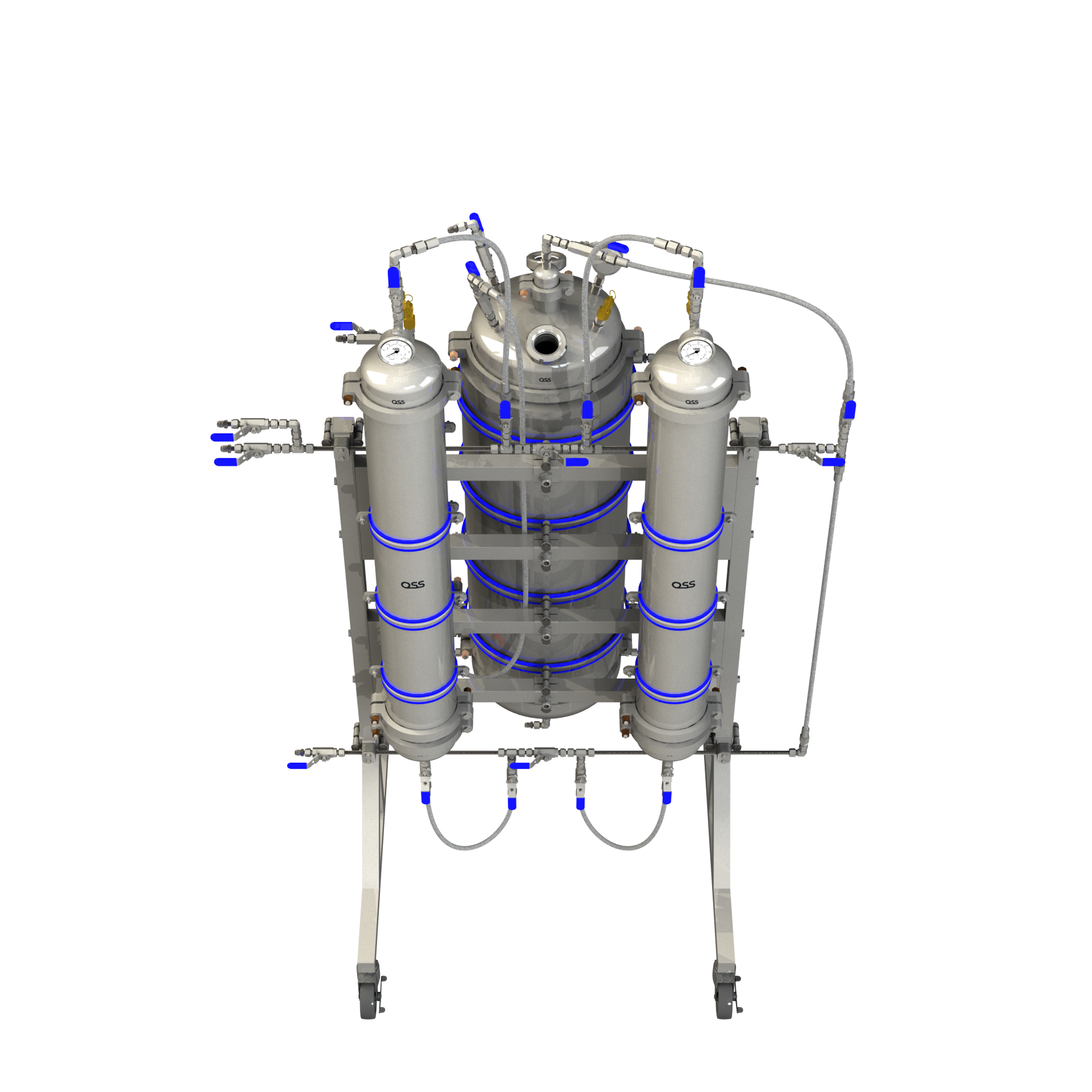

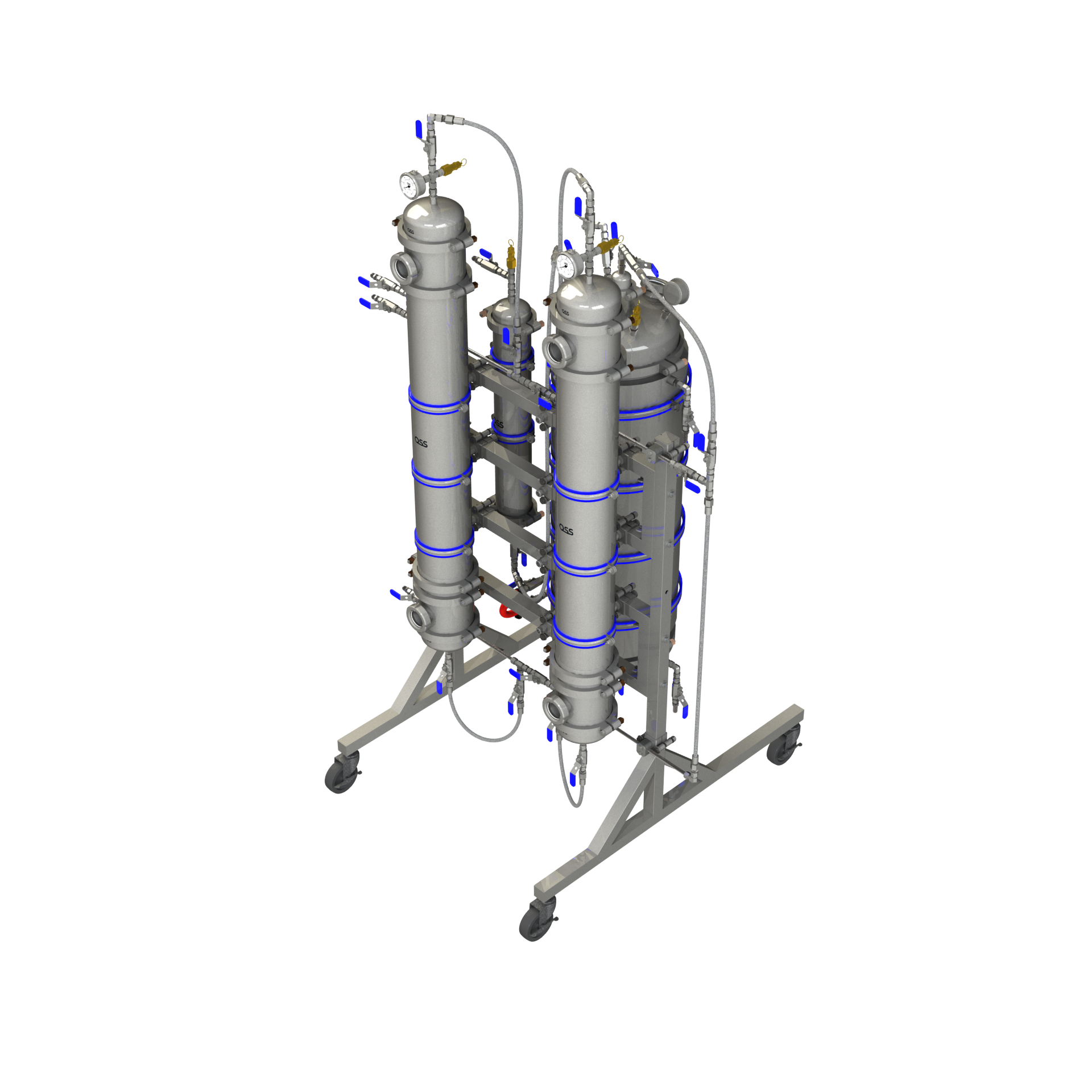

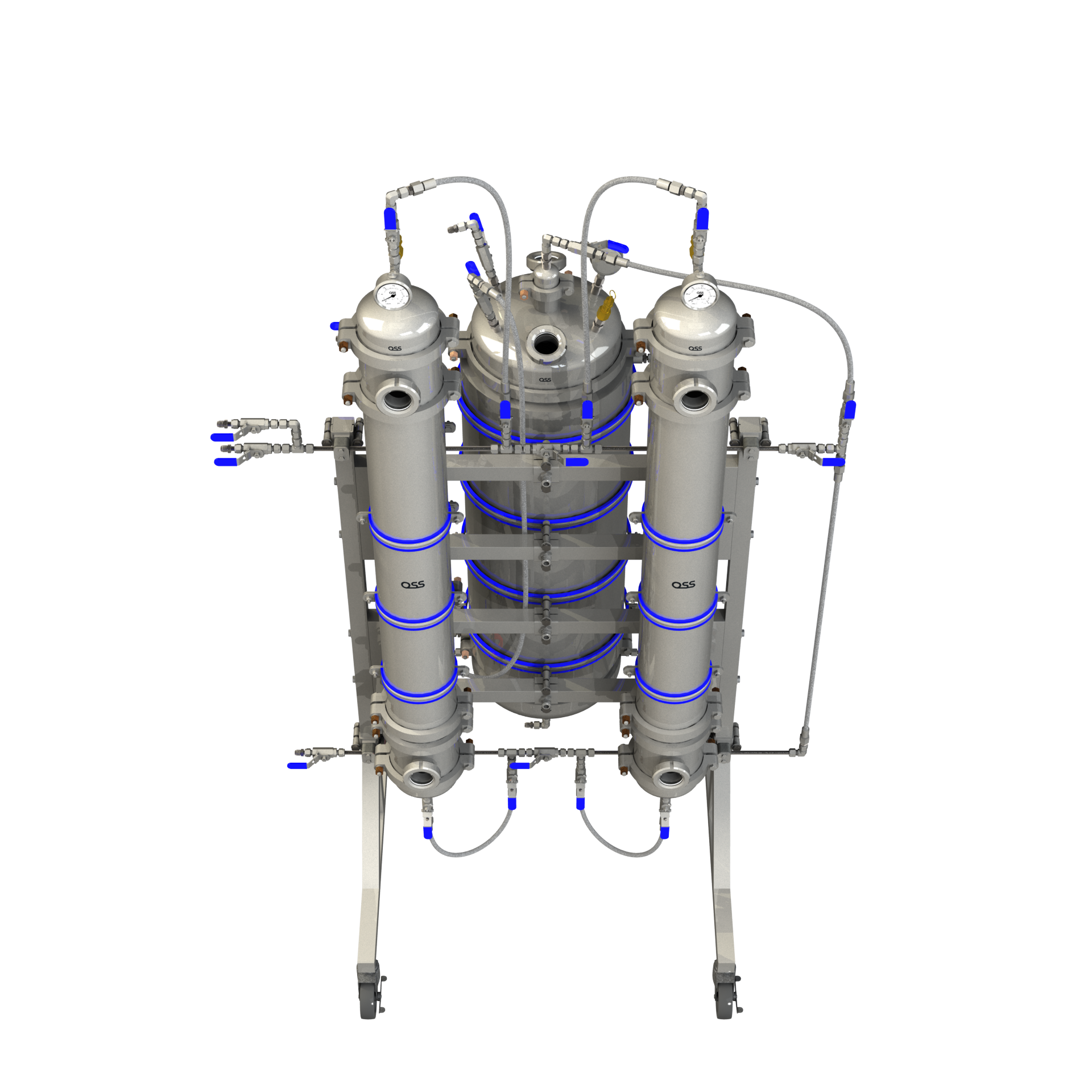

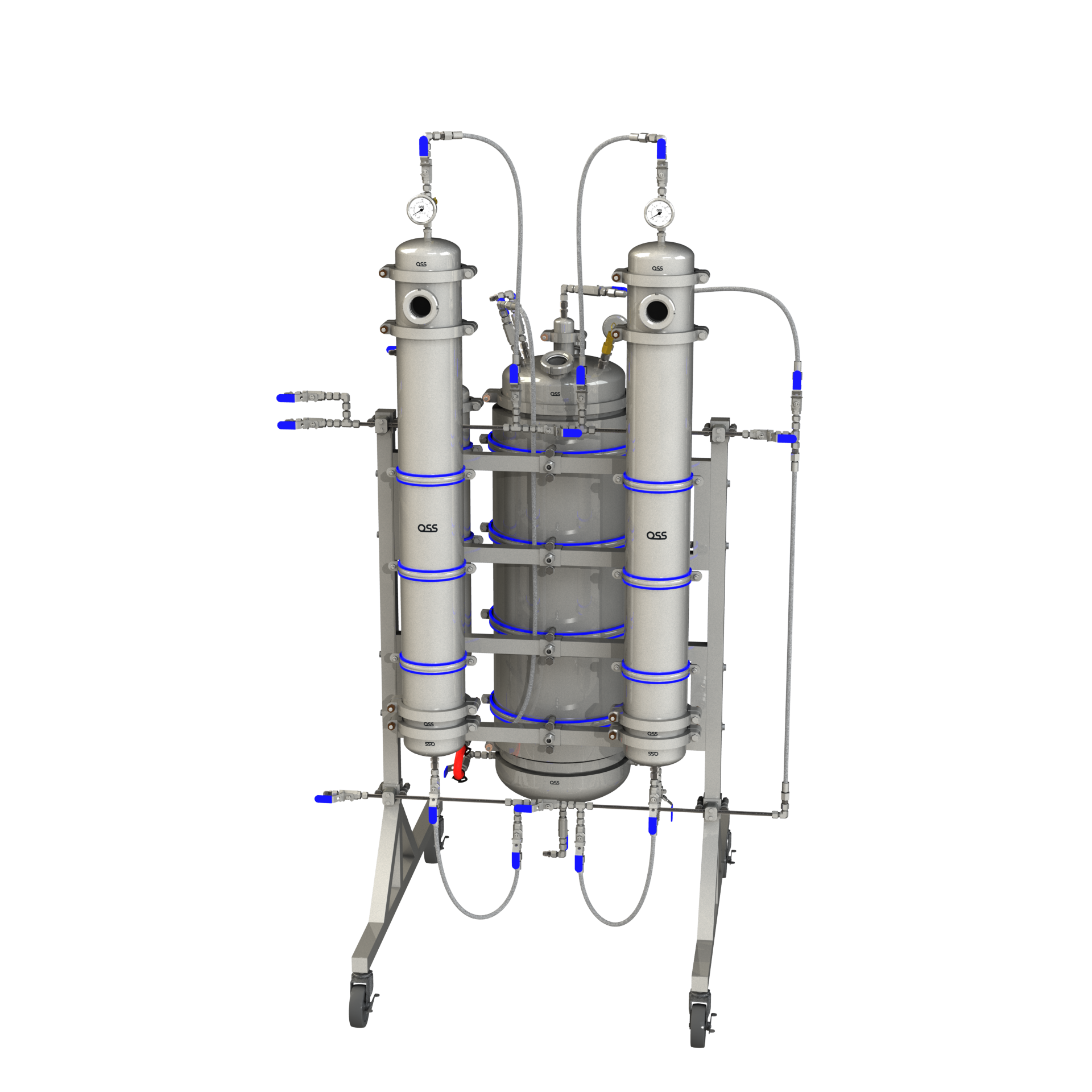

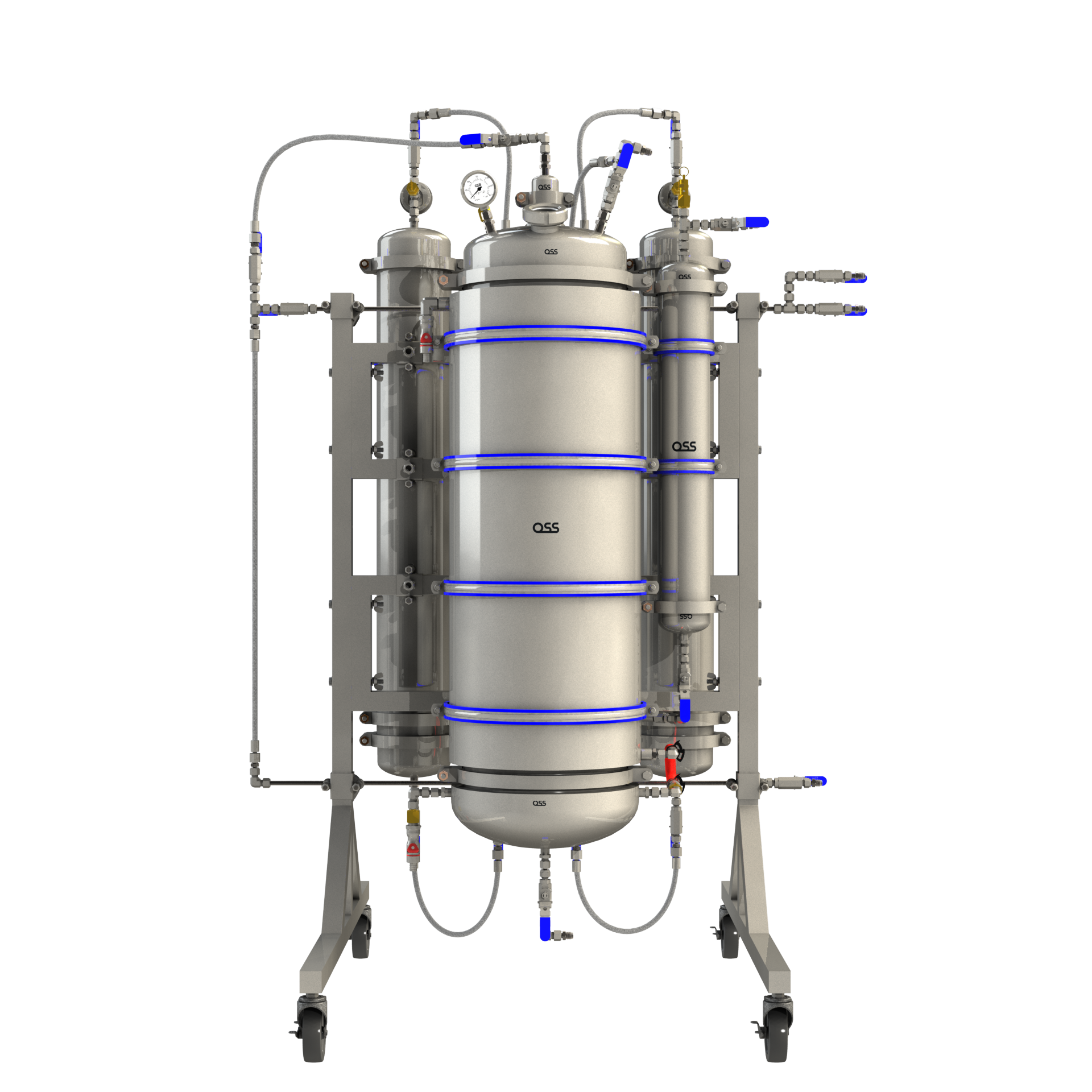

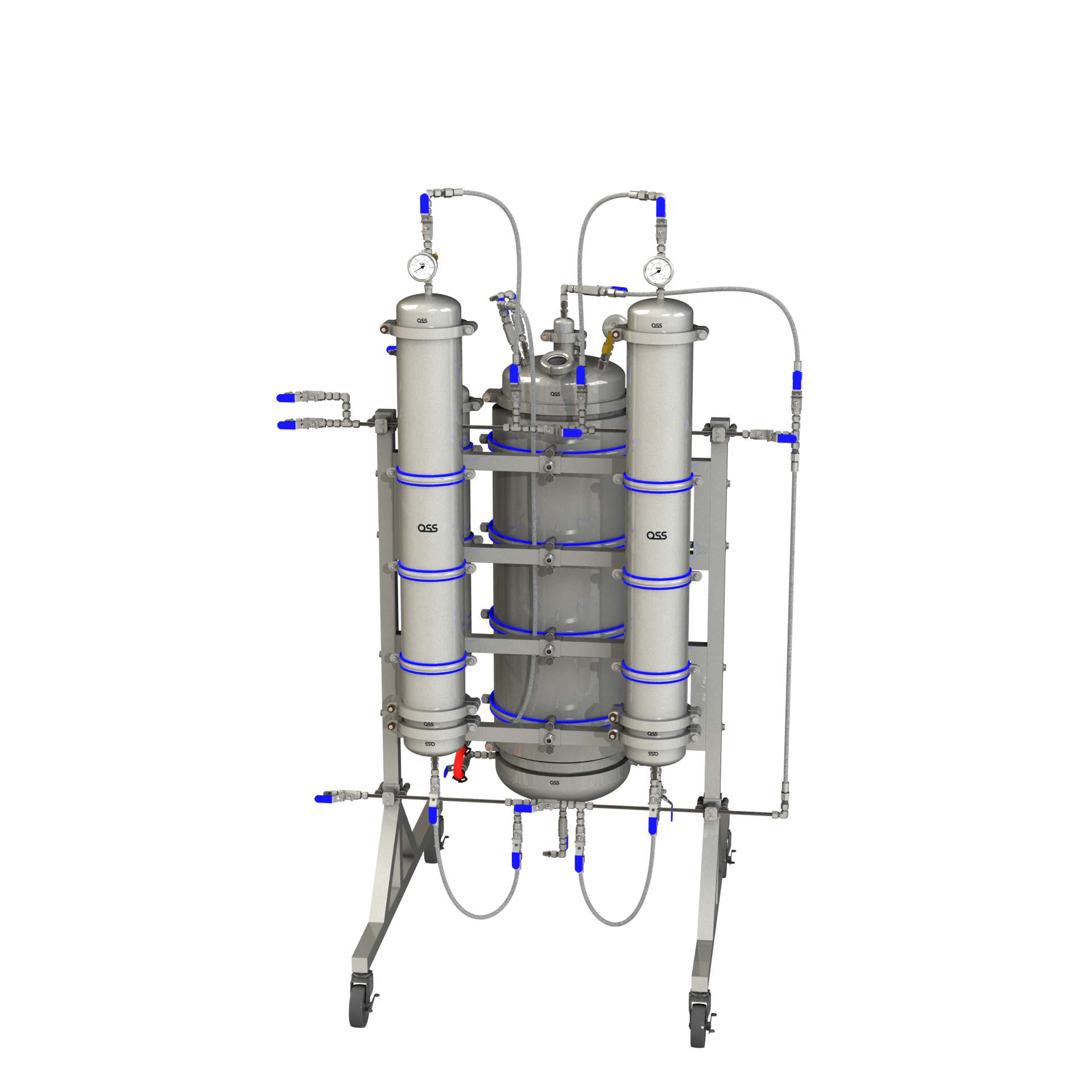

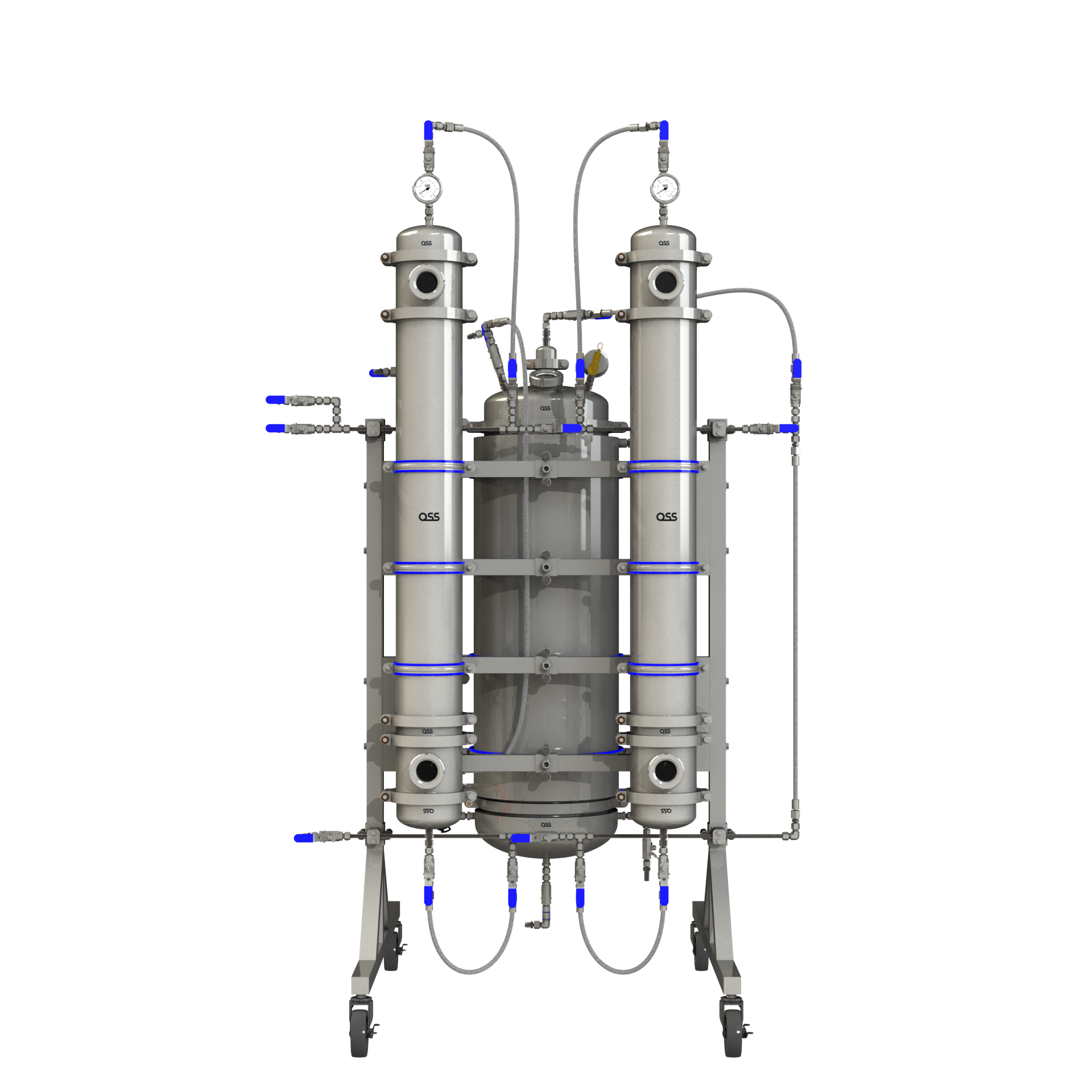

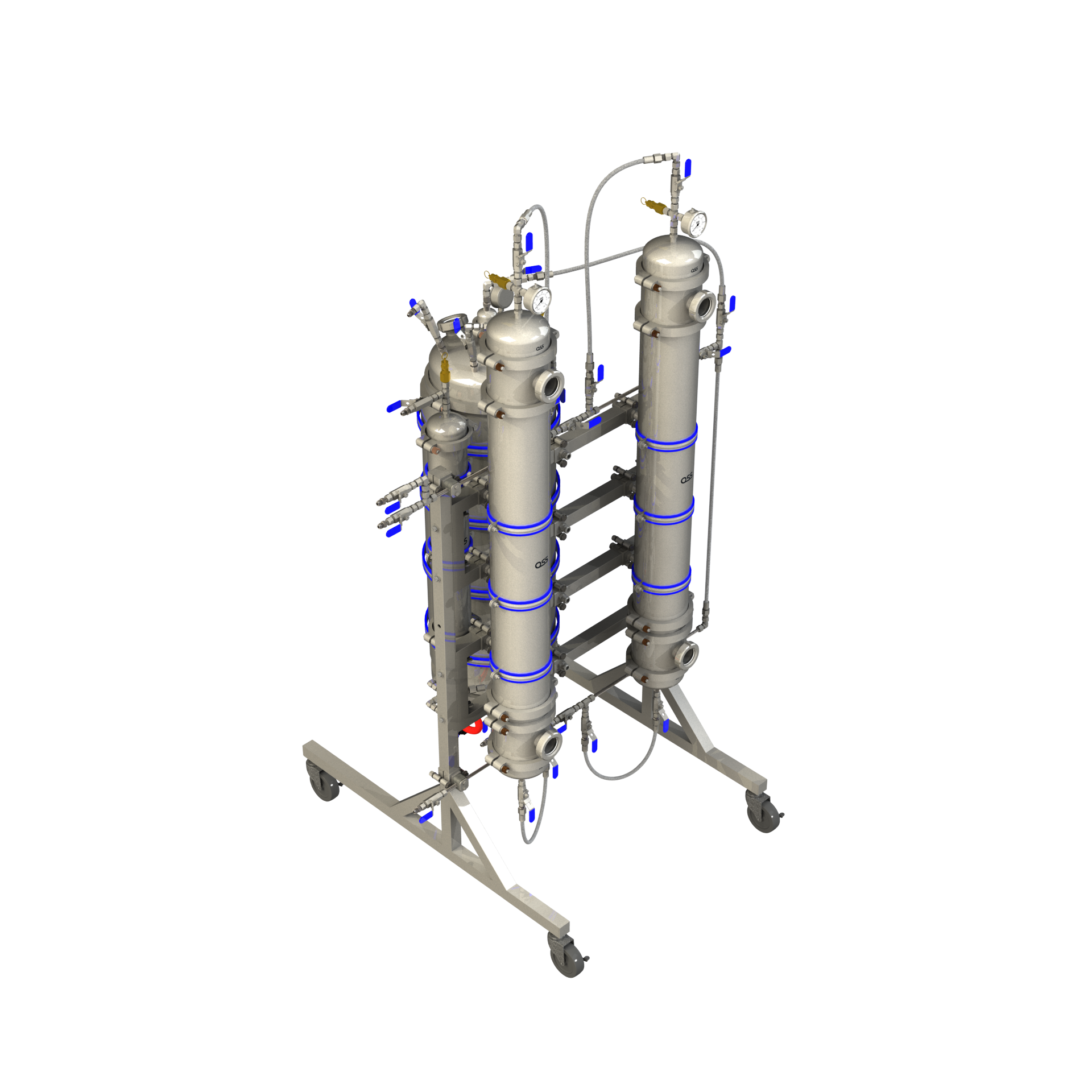

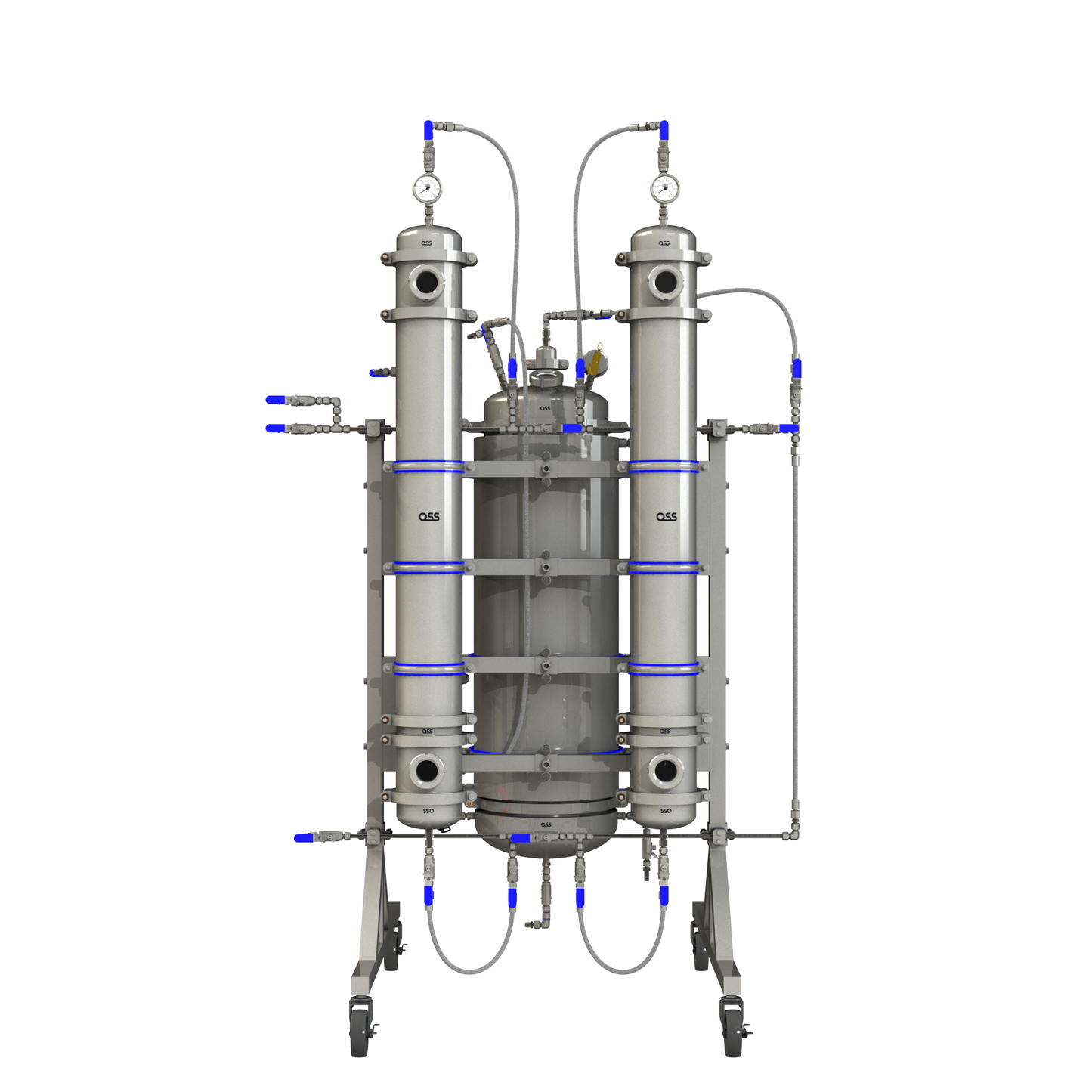

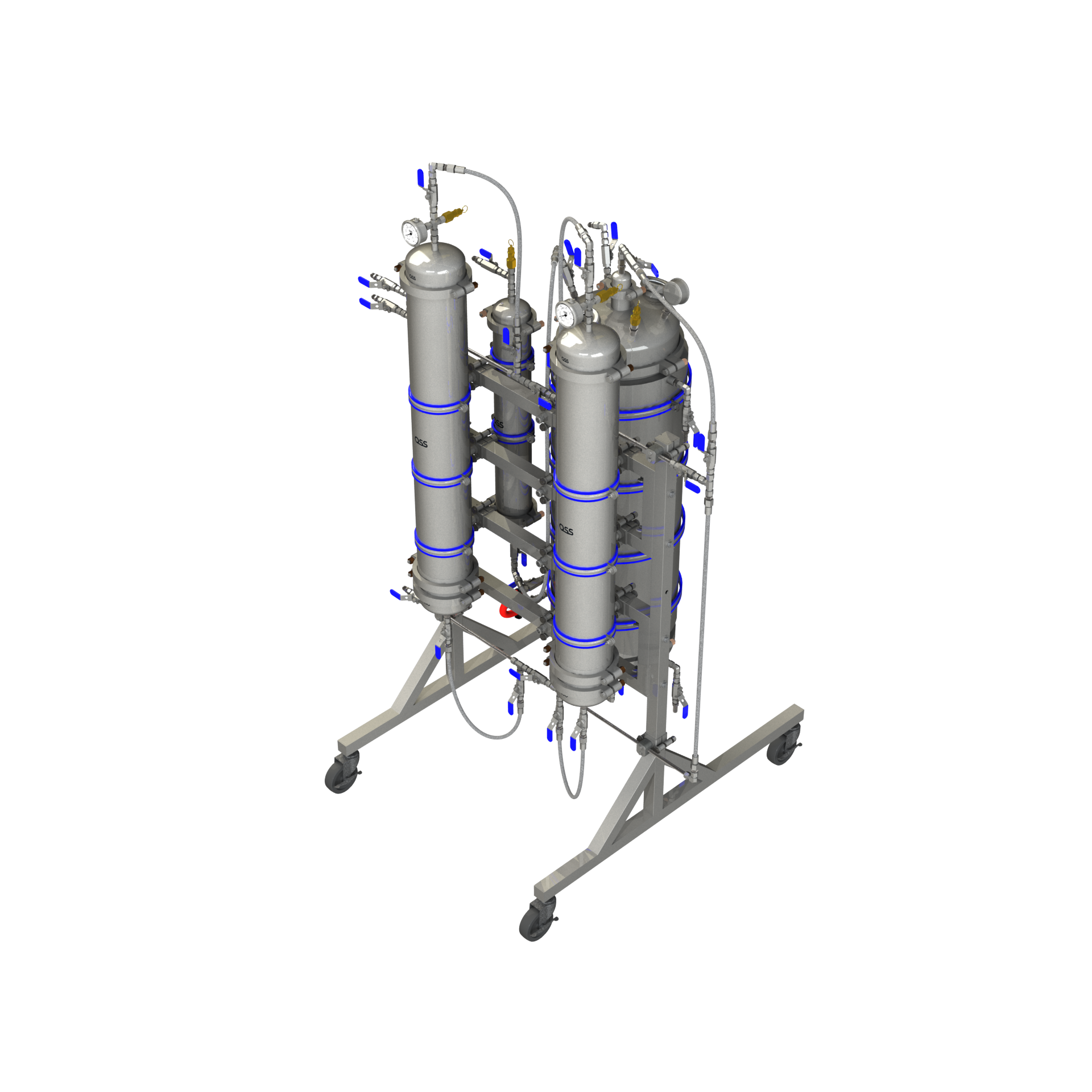

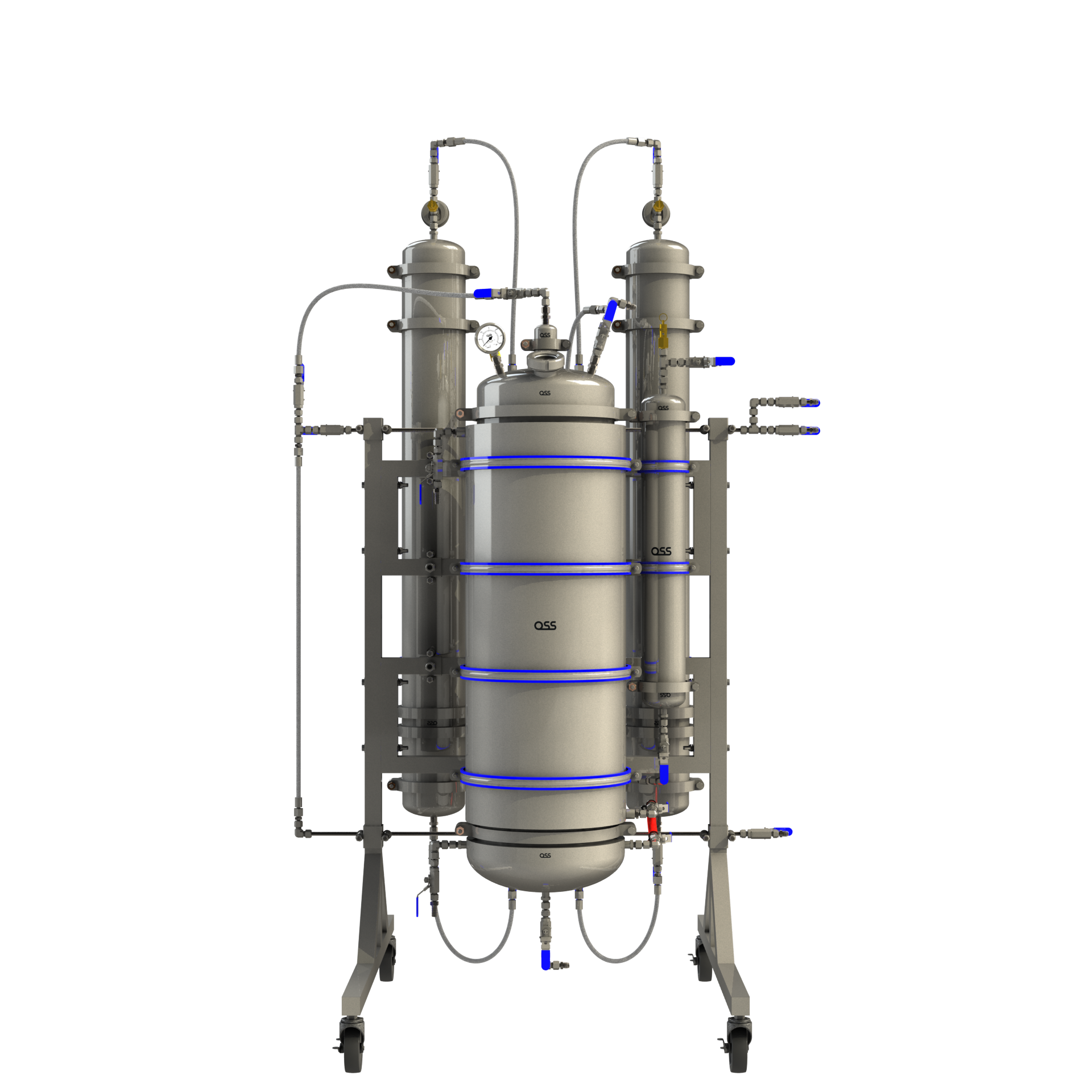

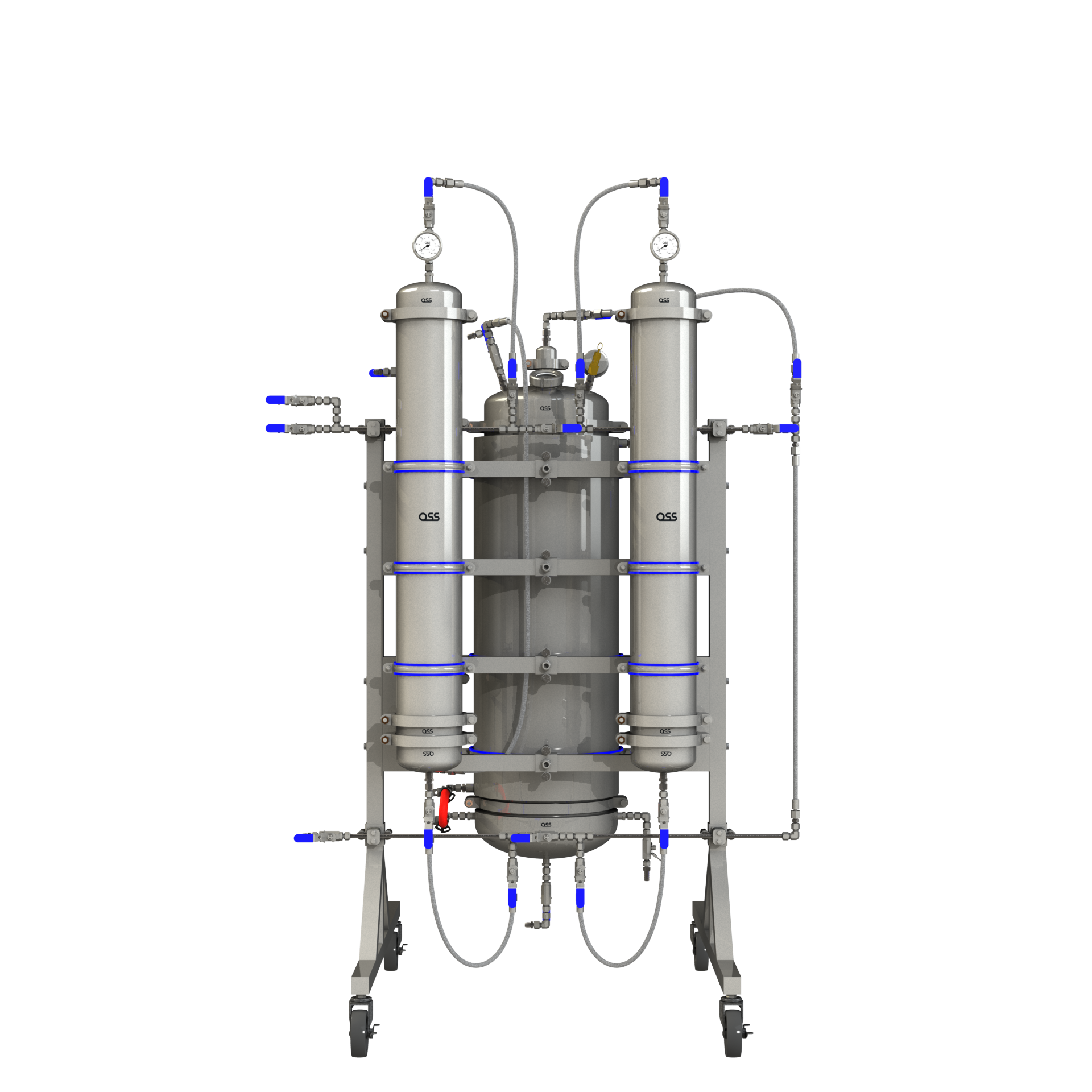

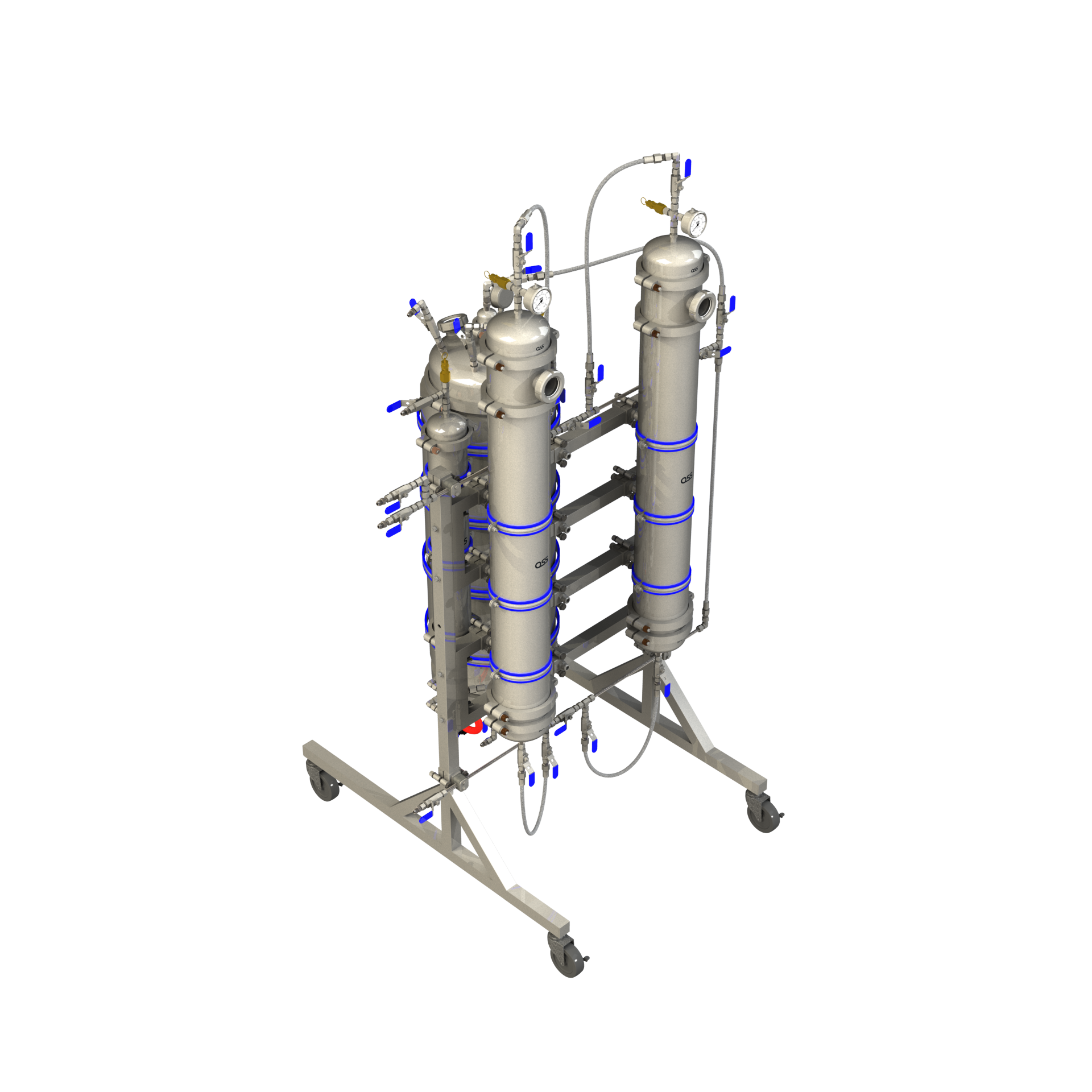

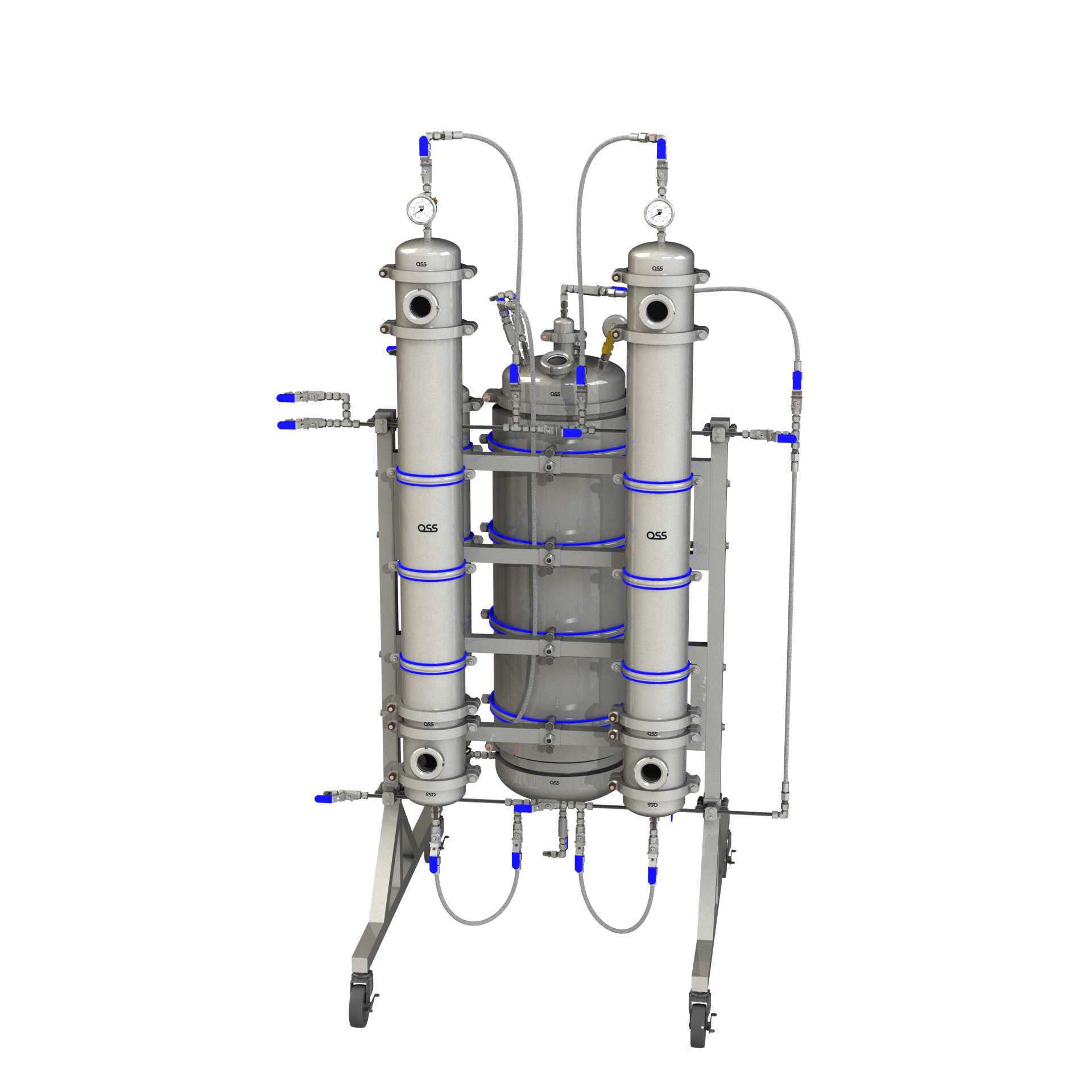

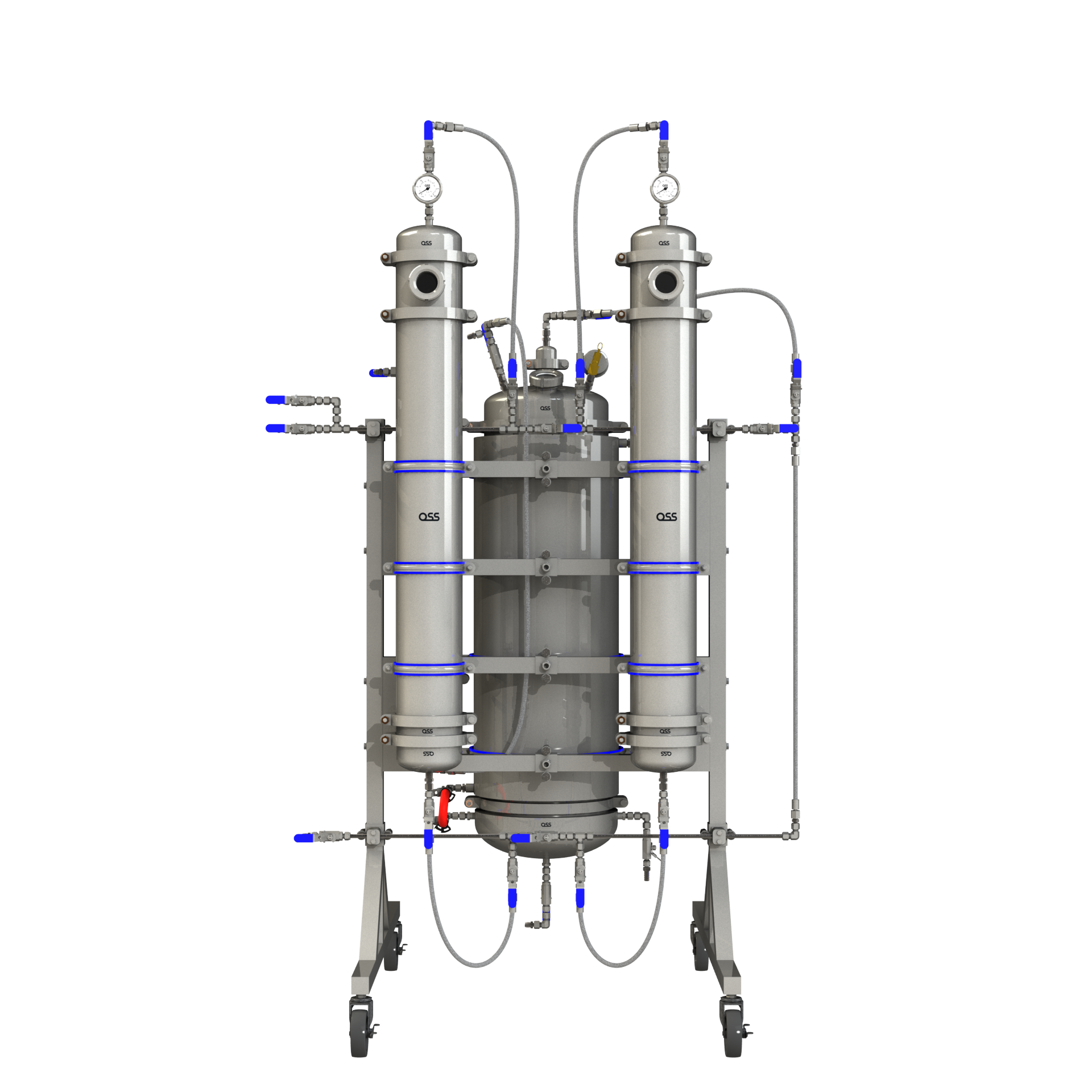

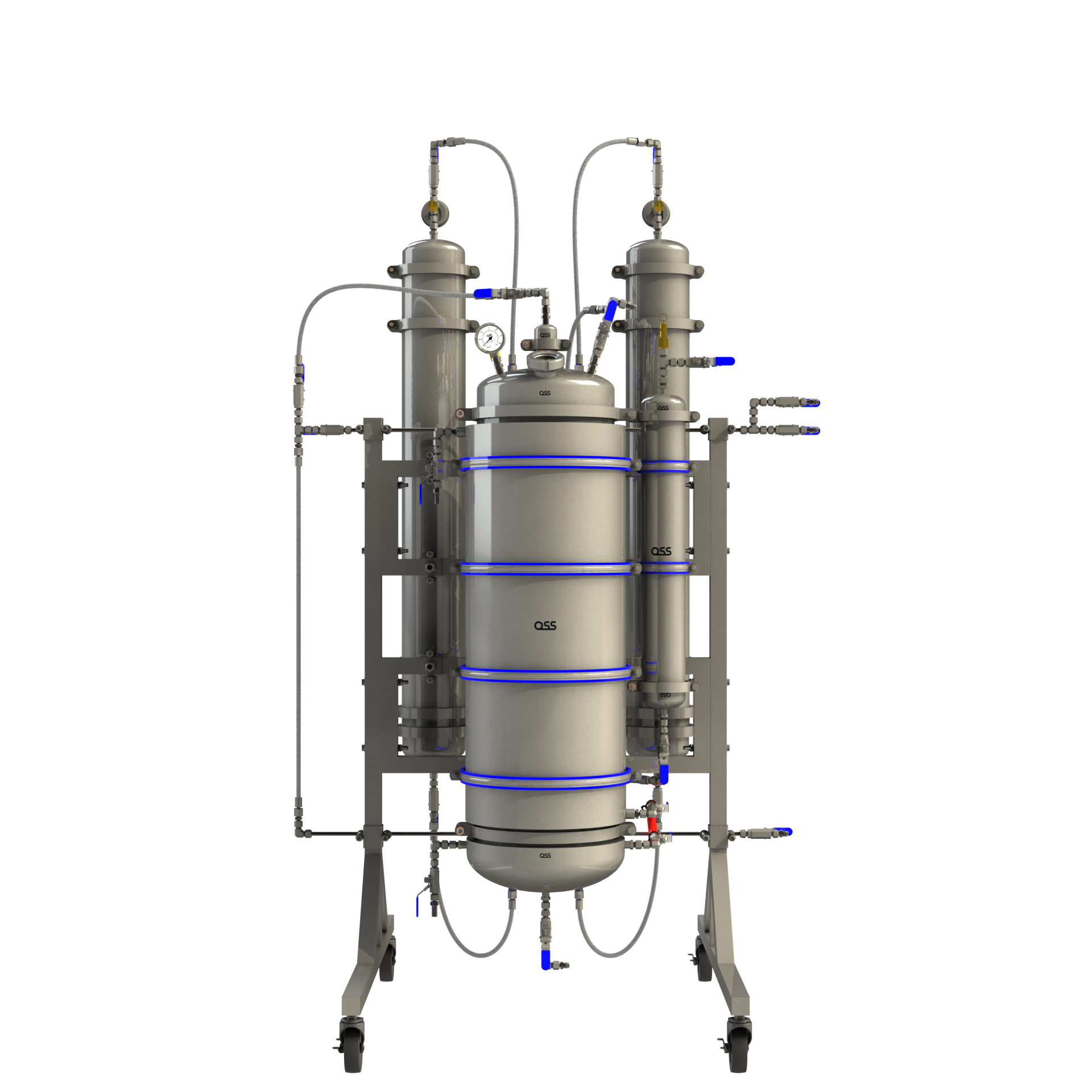

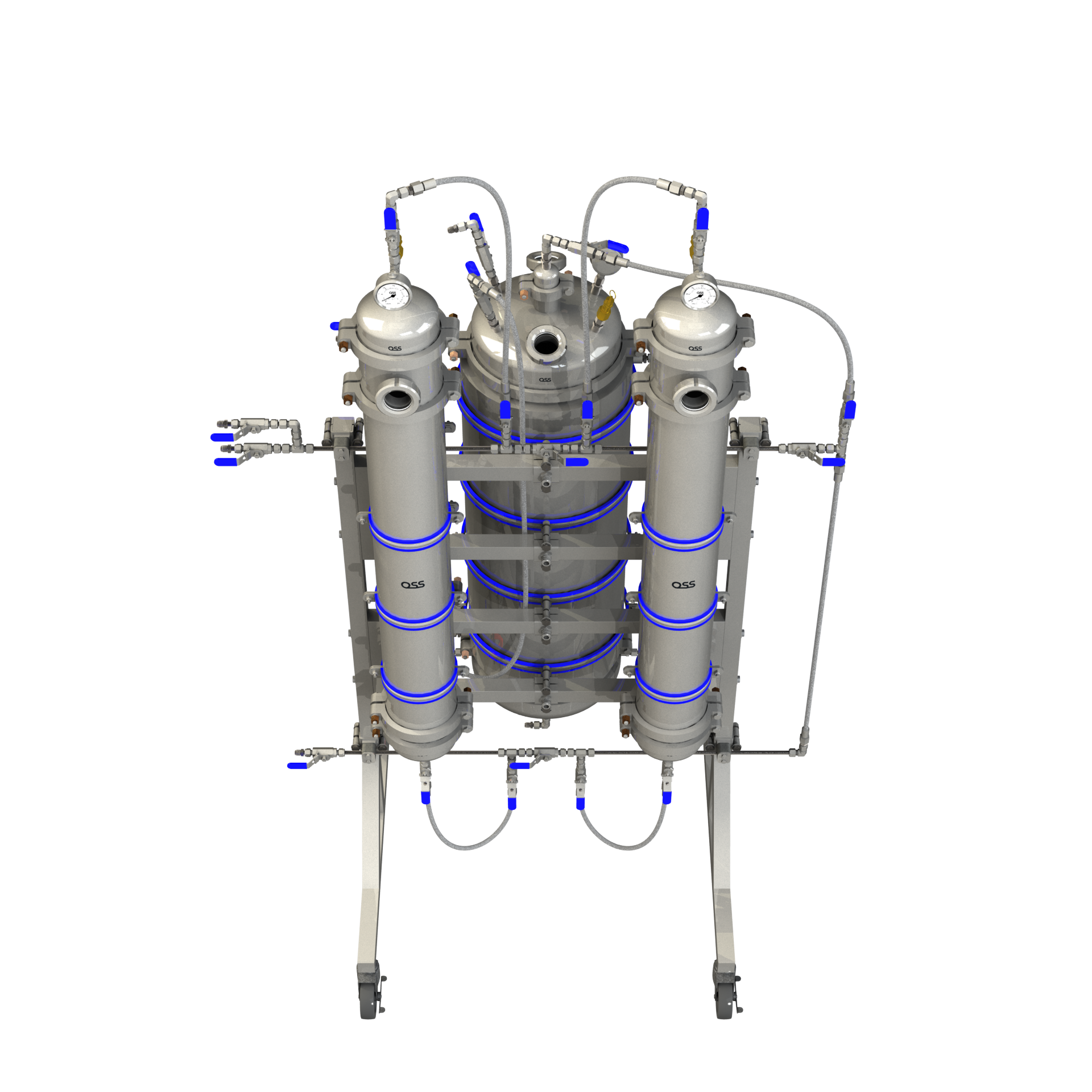

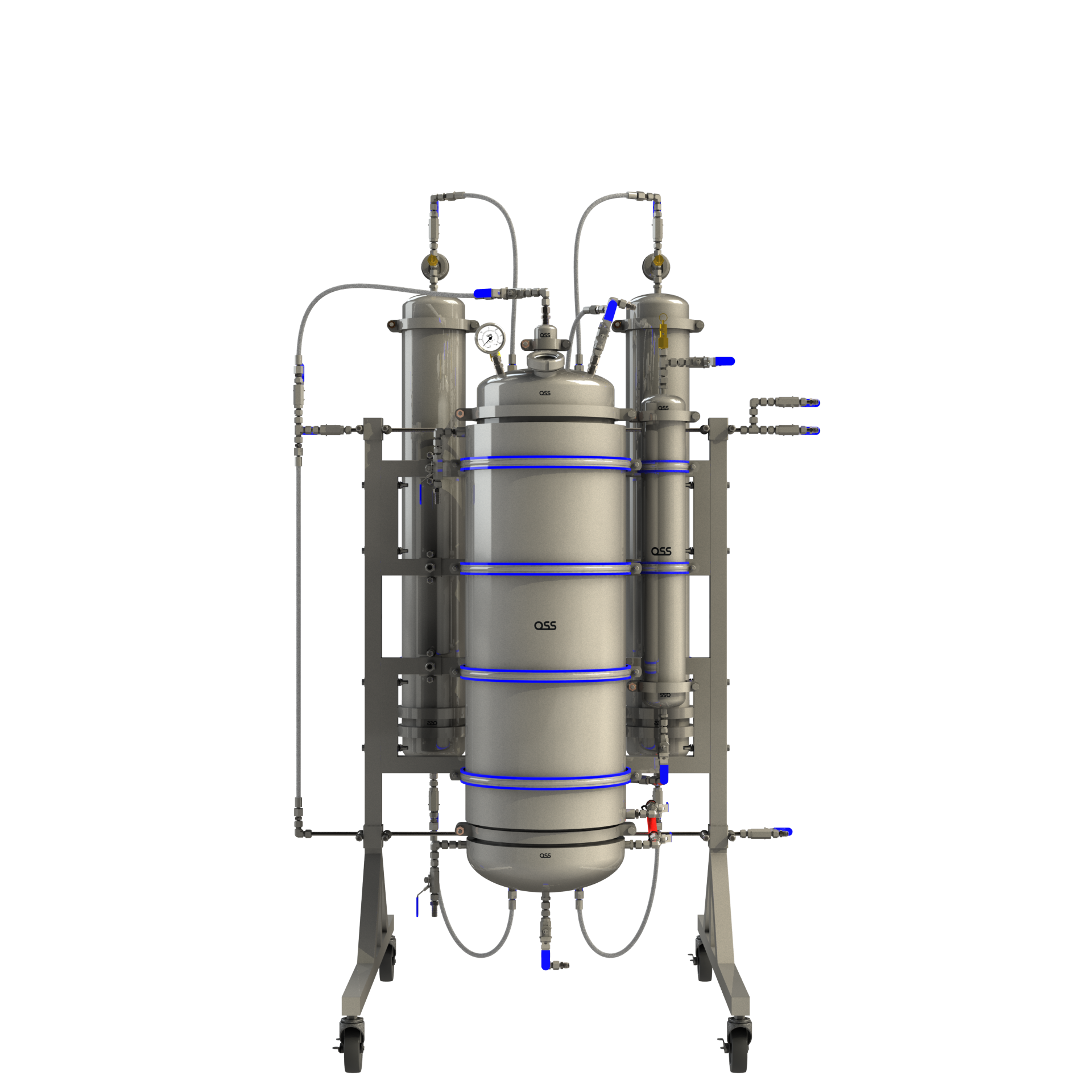

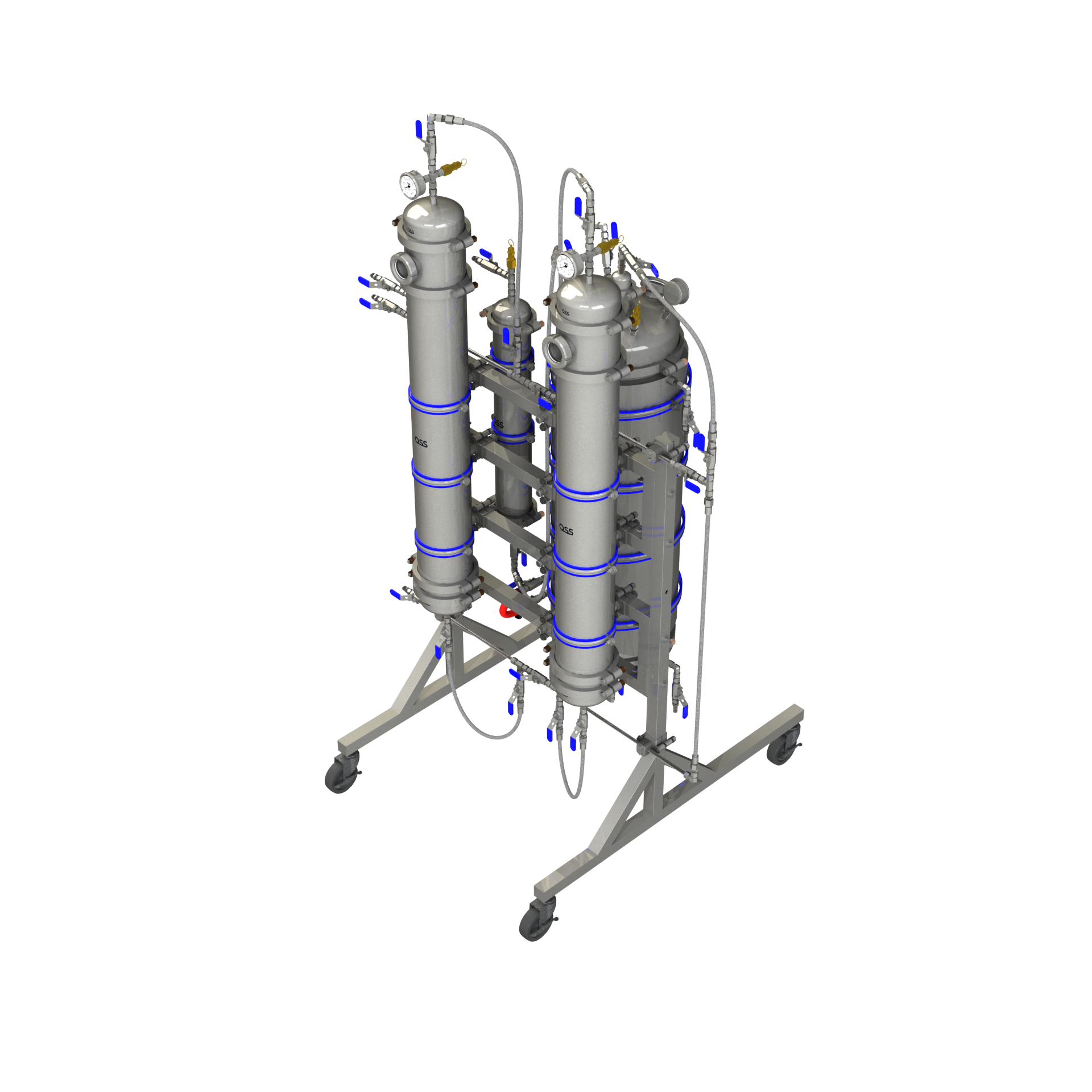

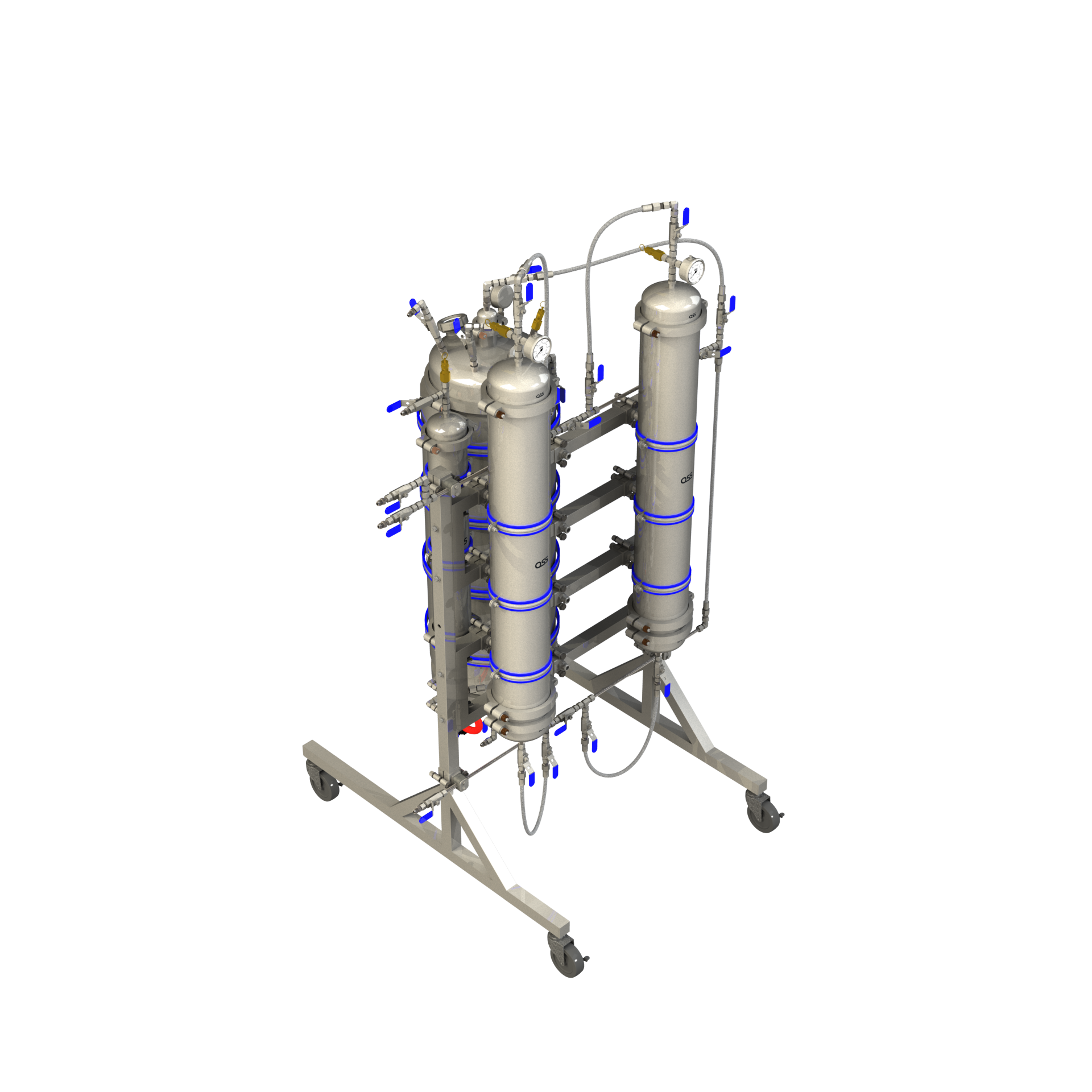

Rainier V1 Extractor - (15lbs.) - 6"x36"

Pre-Assembled & Pressure Tested!

• Two 6” x 36” - 15 lb Material Capacity Spools
• 12” x 36” - 40L/50lbs Evaporator Vessel
• Integrated liquid/gas injection manifold
• 25-25um Inline Filtration
• 1-3um Inline Filtration
• 4” x 24” Inline Desiccant Filter Dryer (removes moisture in your gas!)
• 2” Inline Sight Windows for Process Viewing (watch your complete extraction start to finish!)
• ⅜” Double Ferrule Compression Fittings & Ball Valves
• ⅜” AN/JIC Hose Connections

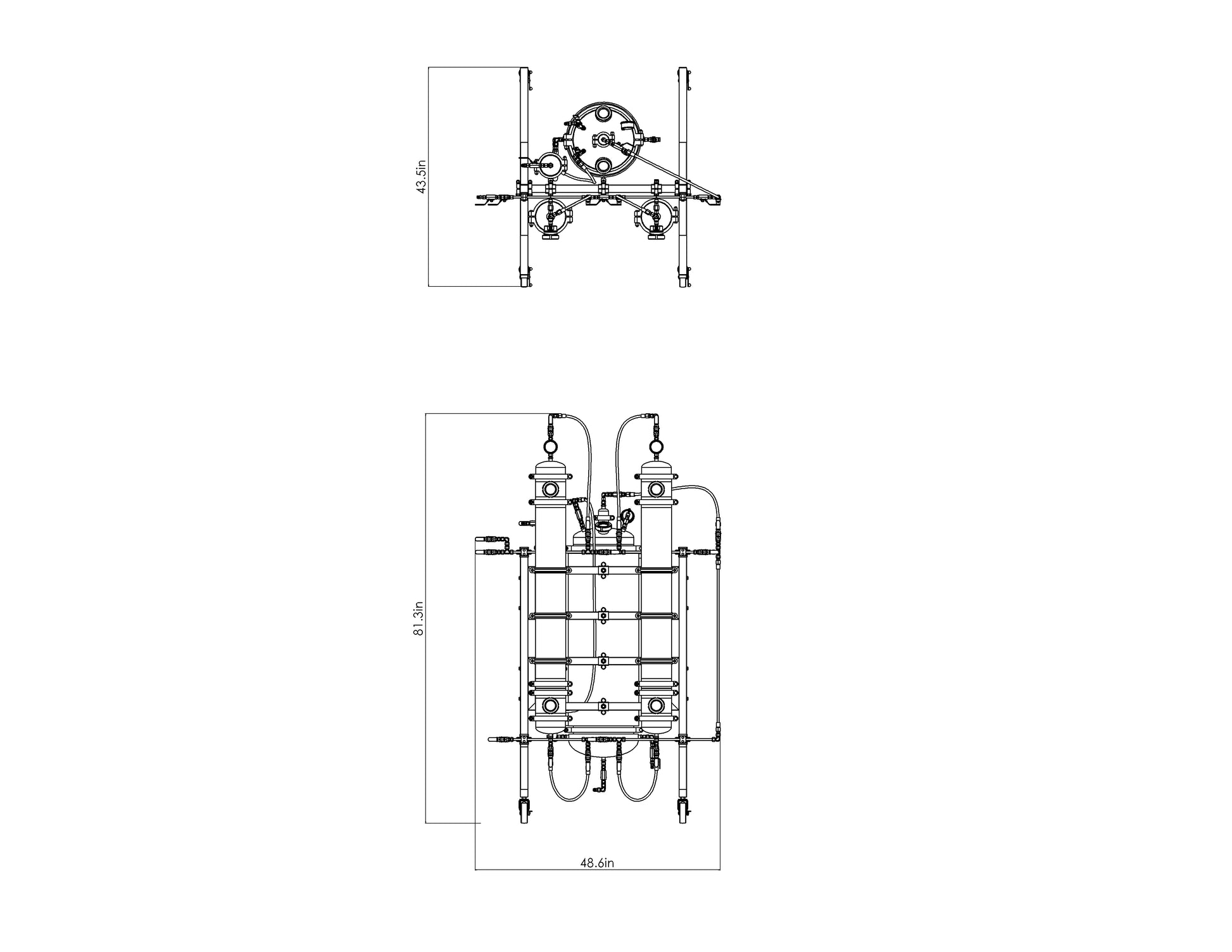

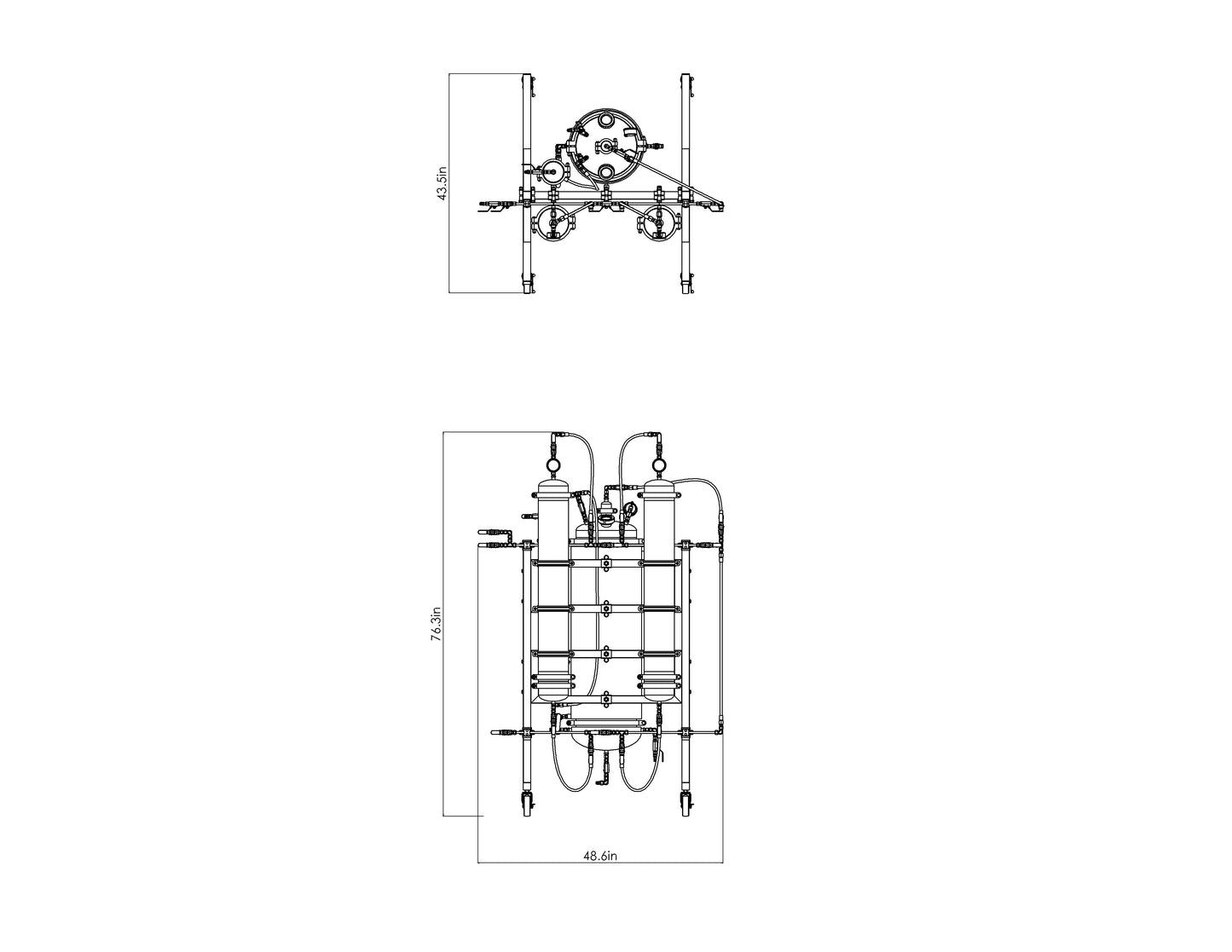

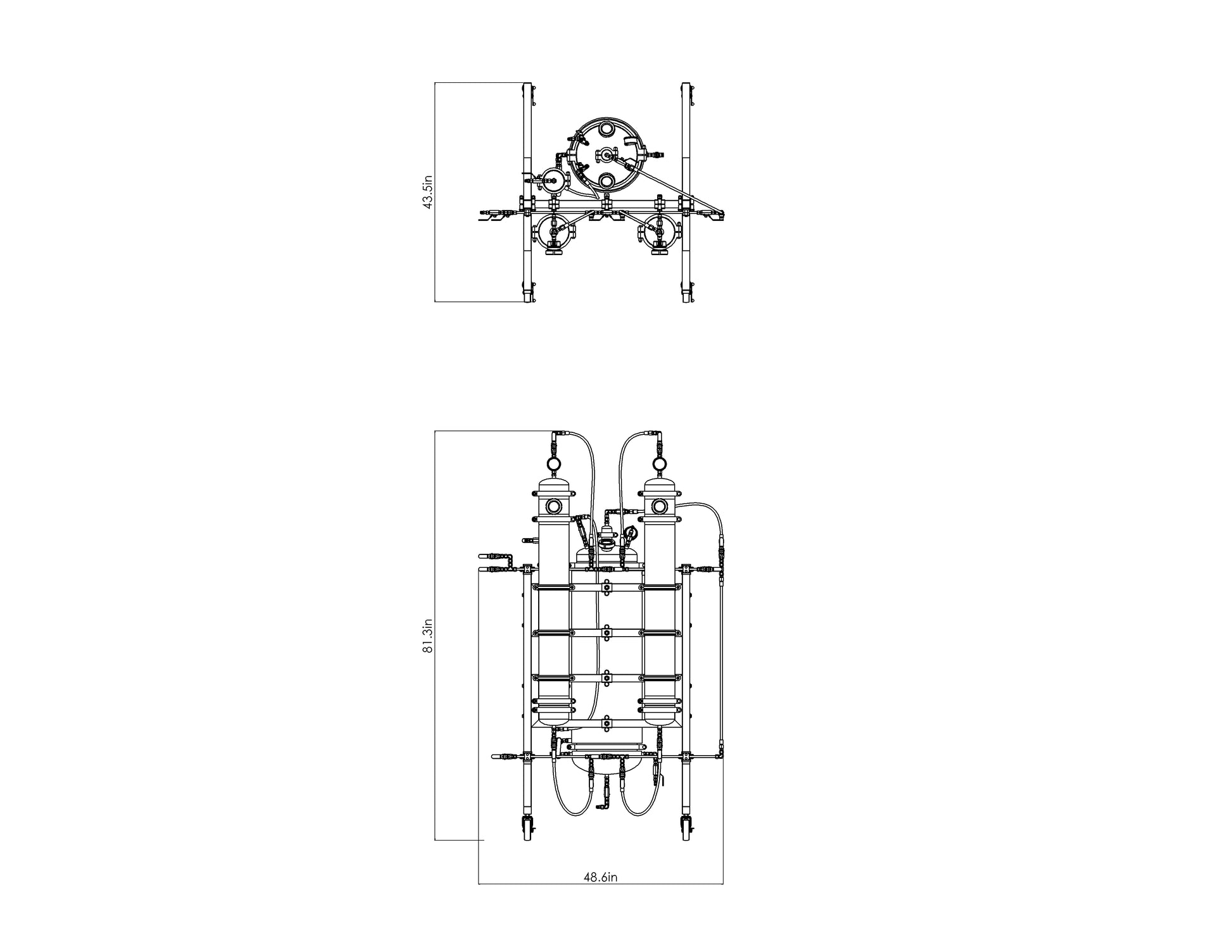

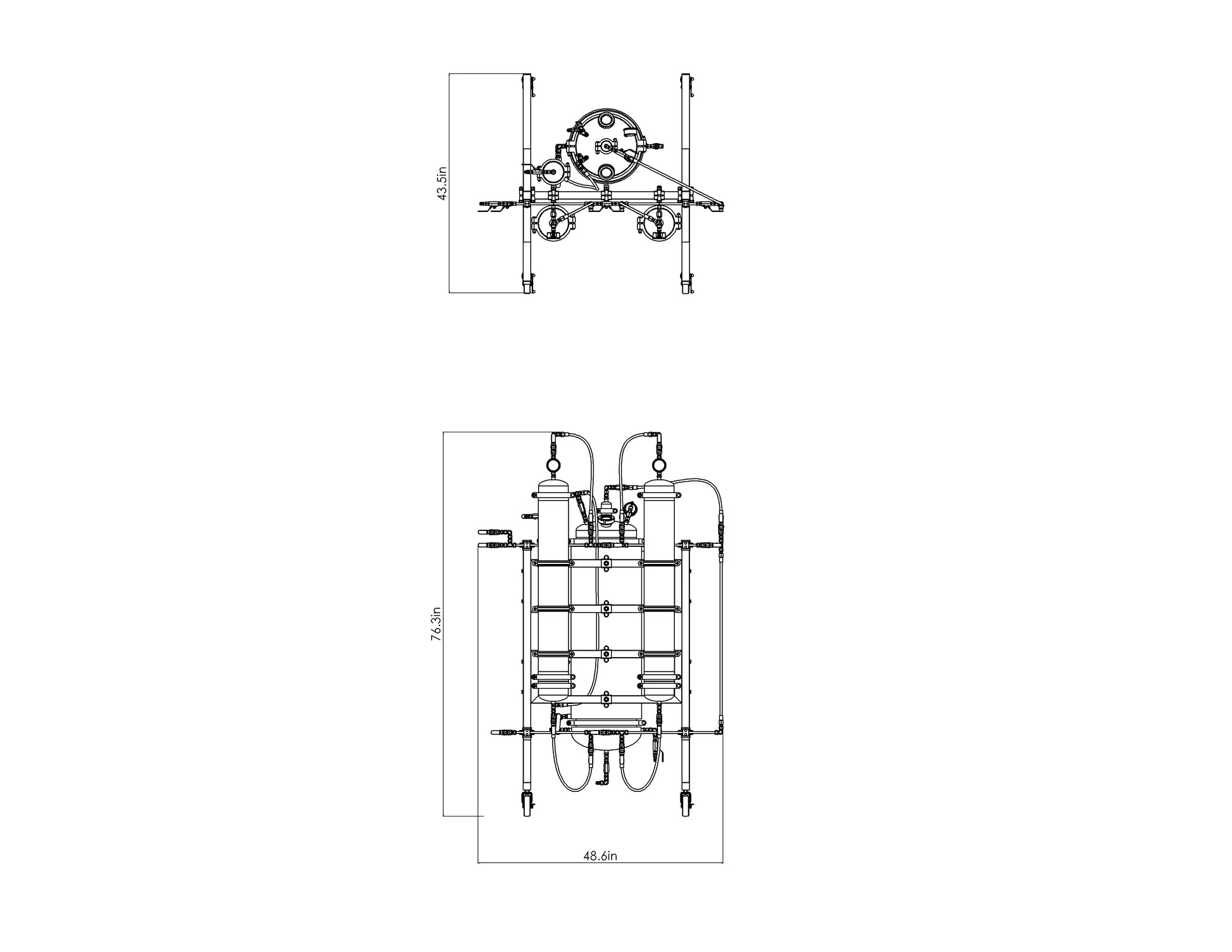

• Compact Footprint: (LxWxH) 41x29x74

• 90 minute run time*.
• Process 60lbs+ of material in one 8 hour shift!**
• Two Material Columns allowing for alternating load/wash cycles.
• Integrated manifold with -50c rated OSS Ball Valves
• Round Bottom Jacketed Base designed for hot water recirculation for a speedy recovery
• Easy to use pour spout for oil capture

• SOLVENT TANK SOLD SEPARATELY
• Setup for Passive Recovery
  -If you're recovering actively, look into our Coils/Condensers, Pumps, and Heaters/Chillers to upgrade
• Included Filter Papers - (1-3micron and 20-25micron)
• Included Filter Socks - (4x Size - 6"x36")
• Included Stainless Braided Hosing - (4x 18", 1x 24", 1x 32", 2x 48", 1x 72", 1x 96")
• Optional: Rubber Hosing for Hot Water Recirculation (½” x 25ft)

• *All run times are based on 99.95% Iso-Butane.
• **Run times do not include loading and unloading of material or cleanup time.
• ***Recovery times vary depending on the amount of available hydrocarbon vapors.

EXAMPLE OF JACKET CONNECTION OPTIONS

1/2" HOSE BARB

1/2" QUICK CONNECTS
