OSS Diaphragm Vacuum Pump

OSS Diaphragm Vacuum Pump

$ 757.56
$ 757.56
Sale Sold out
Shipping calculated at checkout.

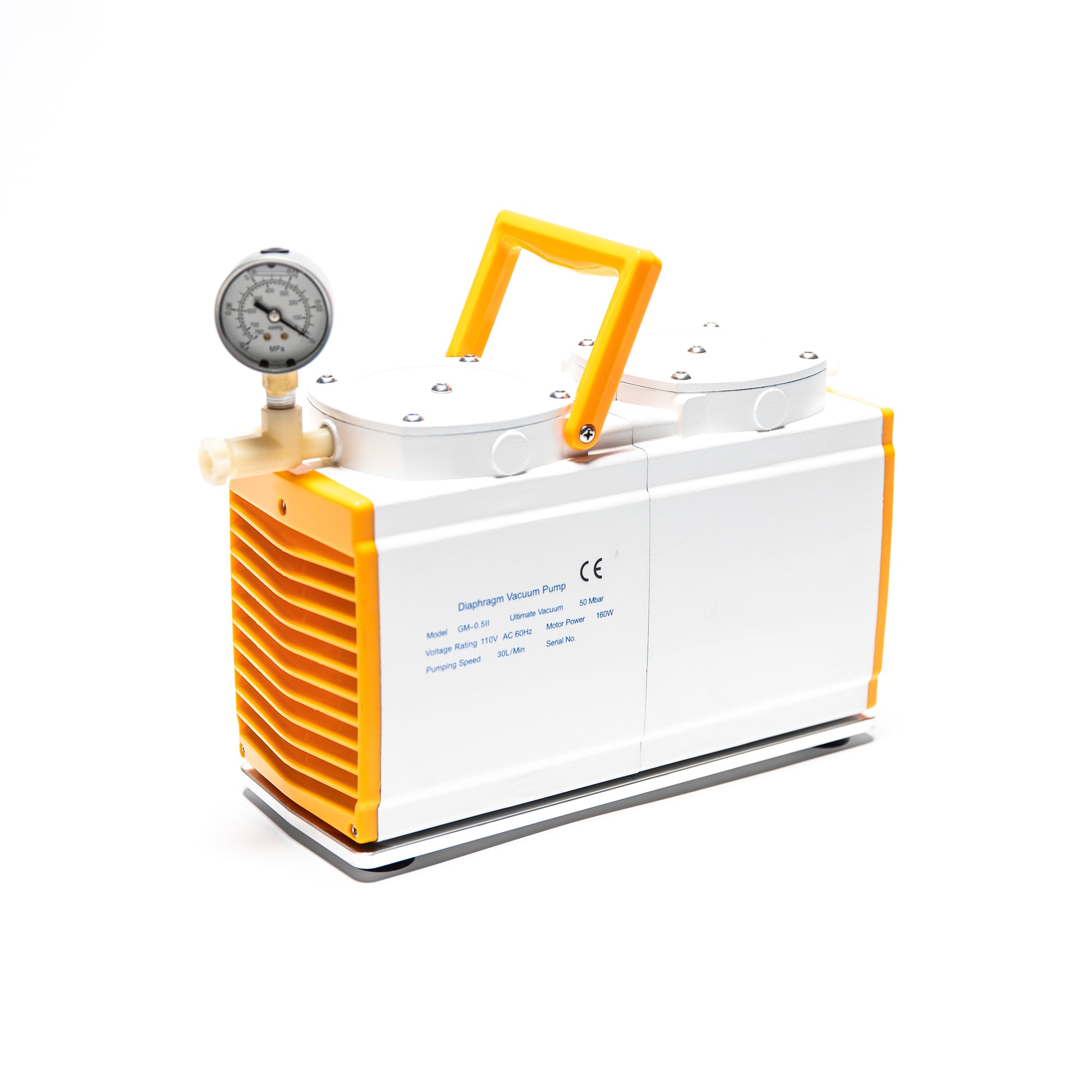

GM-0.5B Diaphragm Vacuum Pump Oil Free Vacuum Pump(Dual Head 30 L/min)
Product Introduction
*Advanced design, high efficiency, long operating life.
*Made of aluminum alloy through die casting.
*Sprayed, agile and beautiful.
Main Parameter
Speed of Evacuation (L/Min):30
Ultimate Pressure:0.095 Mpa
Vacuum:50 mbar
Dimensions:300x20x35 mm
Motor Power (W):160
Inlet (mm):6
Outlet:Silencer
Working Temp (F):7-40
Pump Head:2
Voltage Rating:AC 220V 50Hz/110V 60Hz (optional, by default, we will ship according to the voltage of your Country)
Temp of the body (F):55
Weight (kg):10
Diaphragm:NBR
Valves:NBR
Noise Level (dB):< 50
Remark:Double pump heads negative pressure type
