Agilent IDP-15 9 Cfm Oil-Free Compact Dry Scroll Pump

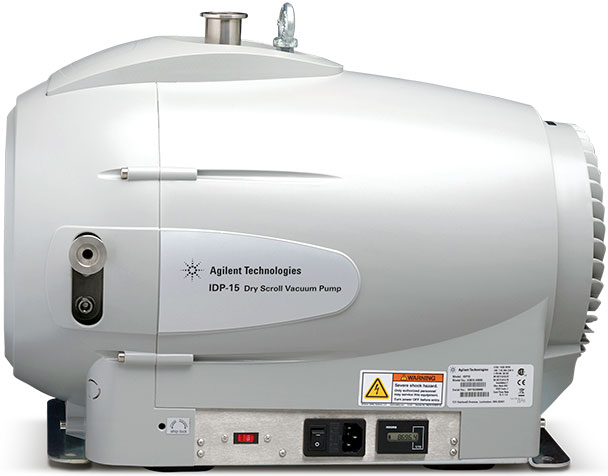

The new Agilent IDP-15 dry scroll pump is designed for extremely quiet (<50dBA) and low vibration operation, delivering a peak pumping speed of 9 cfm at 60Hz.With a single-sided scroll design it offers fast, easy yearly maintenance and low cost of ownership.

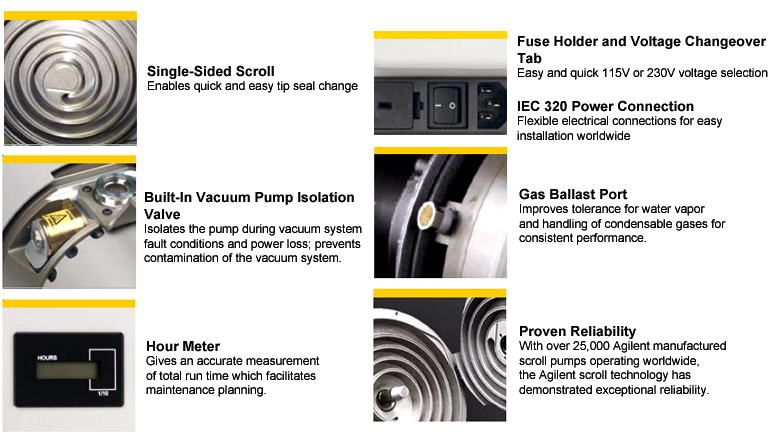

Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.

IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump.

Standard Packages

Standard package    Part description  Quantity Part image  Agilent IDP-15 9 cfm scroll pump (X3815-64000) 1 pc  KF25 flexible stainless steel vacuum bellow (3.3 ft) 1 pc  KF25 wing nut flange quick clamp 2 pcs  KF25 flange centering ring 2 pcs  Agilent North America 15A/125V power cord (656458203) 1 pc   Quick Start Card 1 pc Hex Key 1 pc Breather Vent 1 pc 10 A Fuse 1 pc
