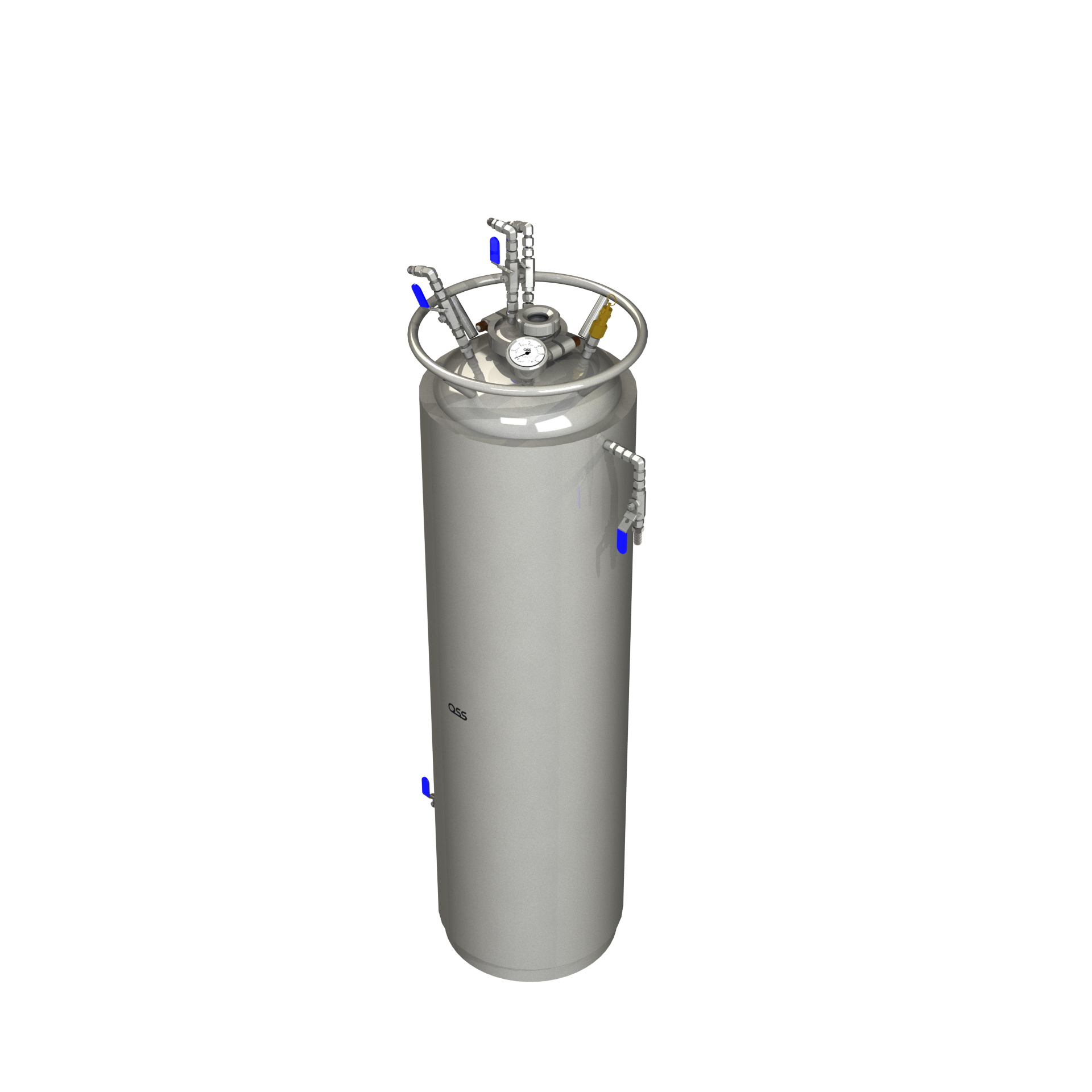

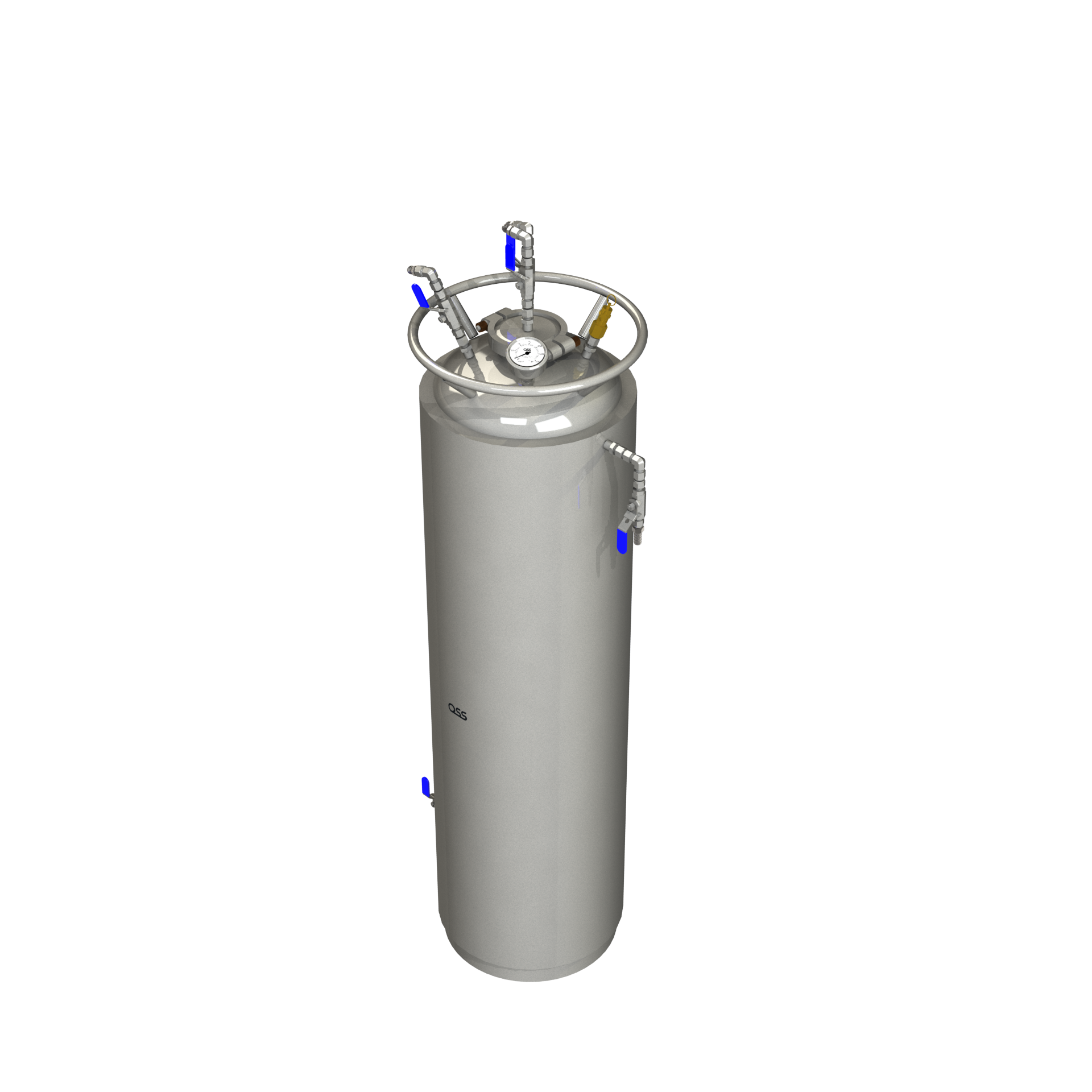

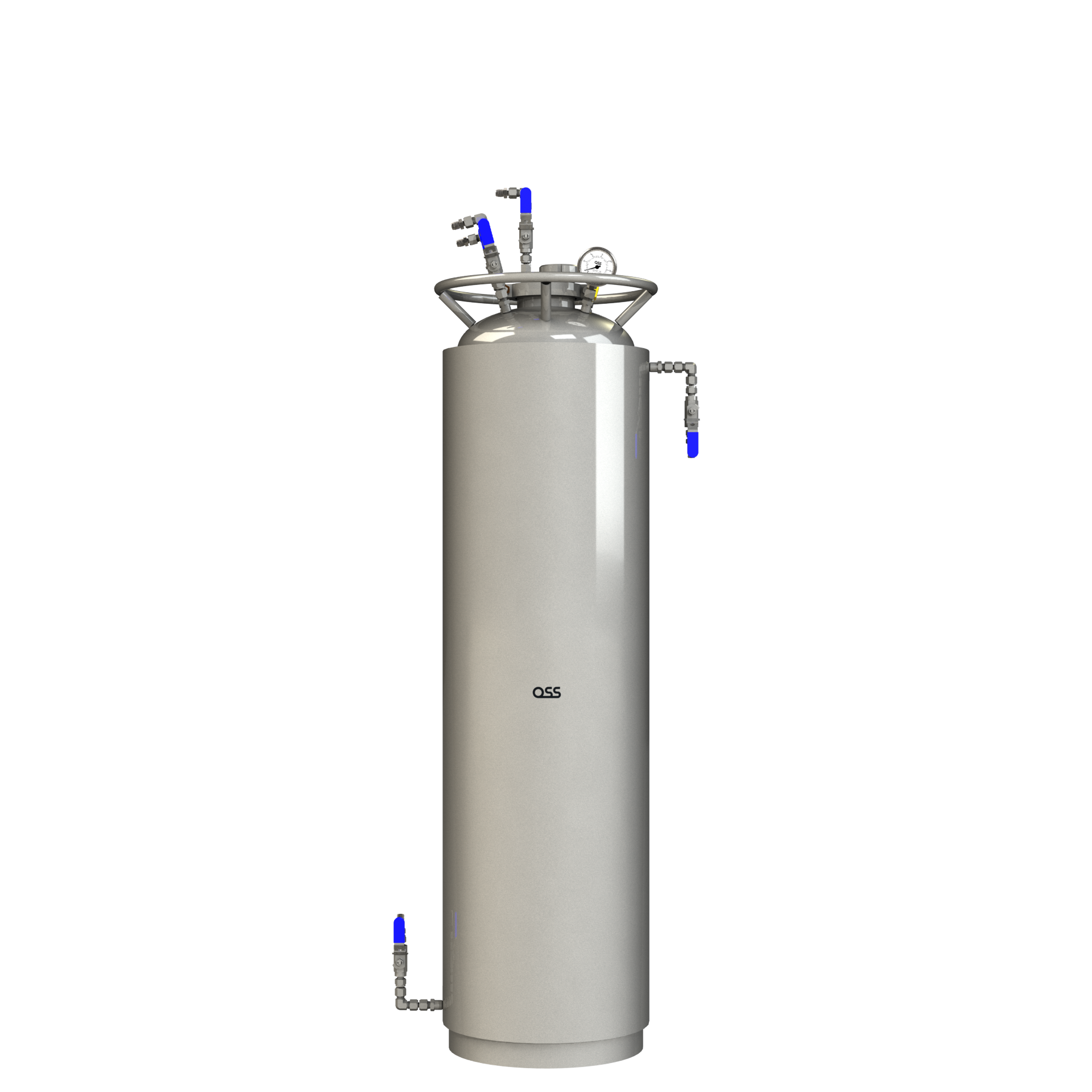

OSS Jacketed Solvent Tank - 100lb



Solvent storage vessel; ~100lb capacity


Fully Jacketed Solvent Tank


Comes Assembled & Pressure tested, saving you time and $$$!!


Features:
Compound Pressure Gauge - -30-150psi
Pressure Relief Valve - 125psi
3/8" JIC Connections
4" Center Opening
14" Safety Ring
Bottom Crush-Proof Ring
Jacketed Recirculation - 1/2" Hose Barb
Nylon Hose Clamps
Thread Tape



Optional Accessories:
25ft 1/2" Rubber Hosing for Recirculation

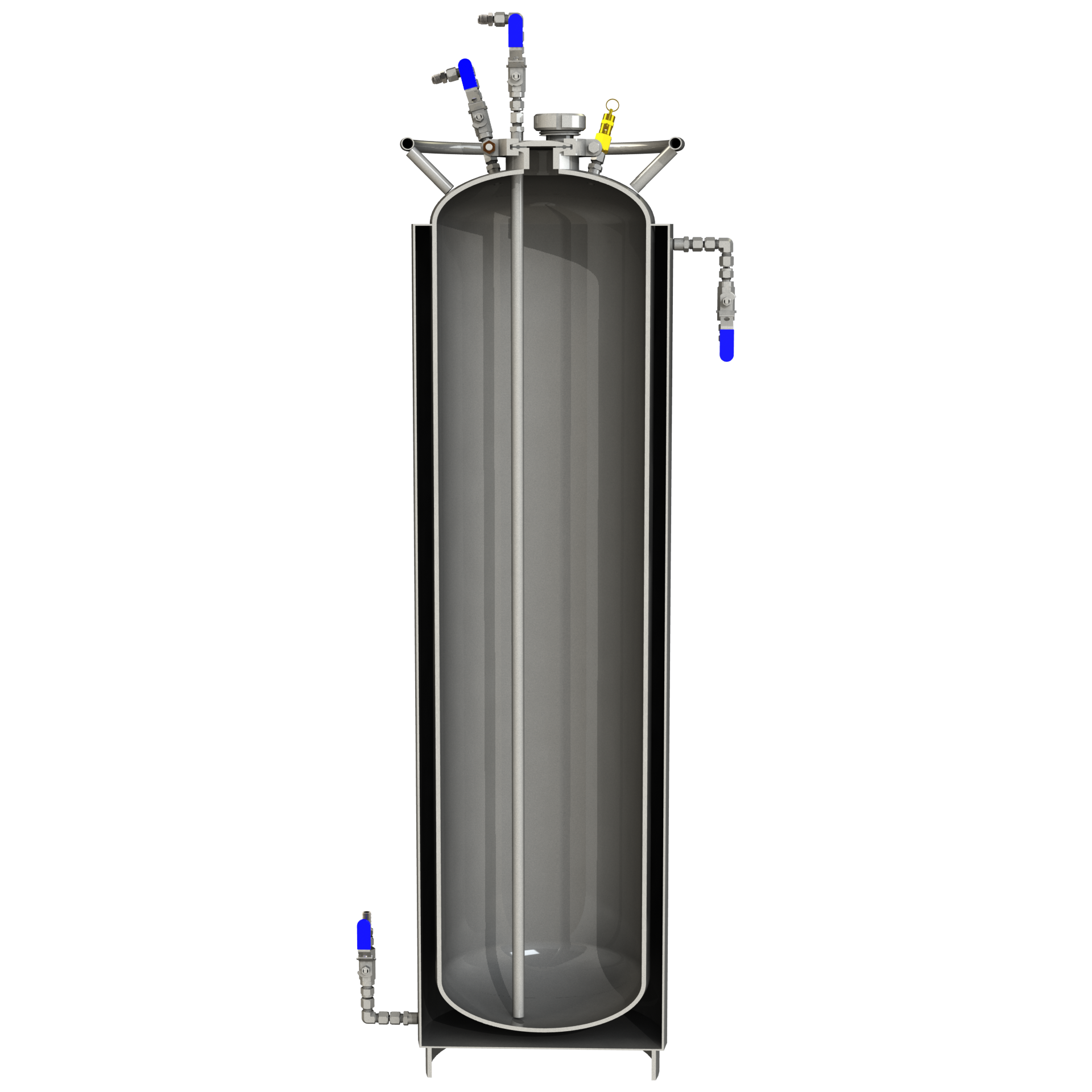

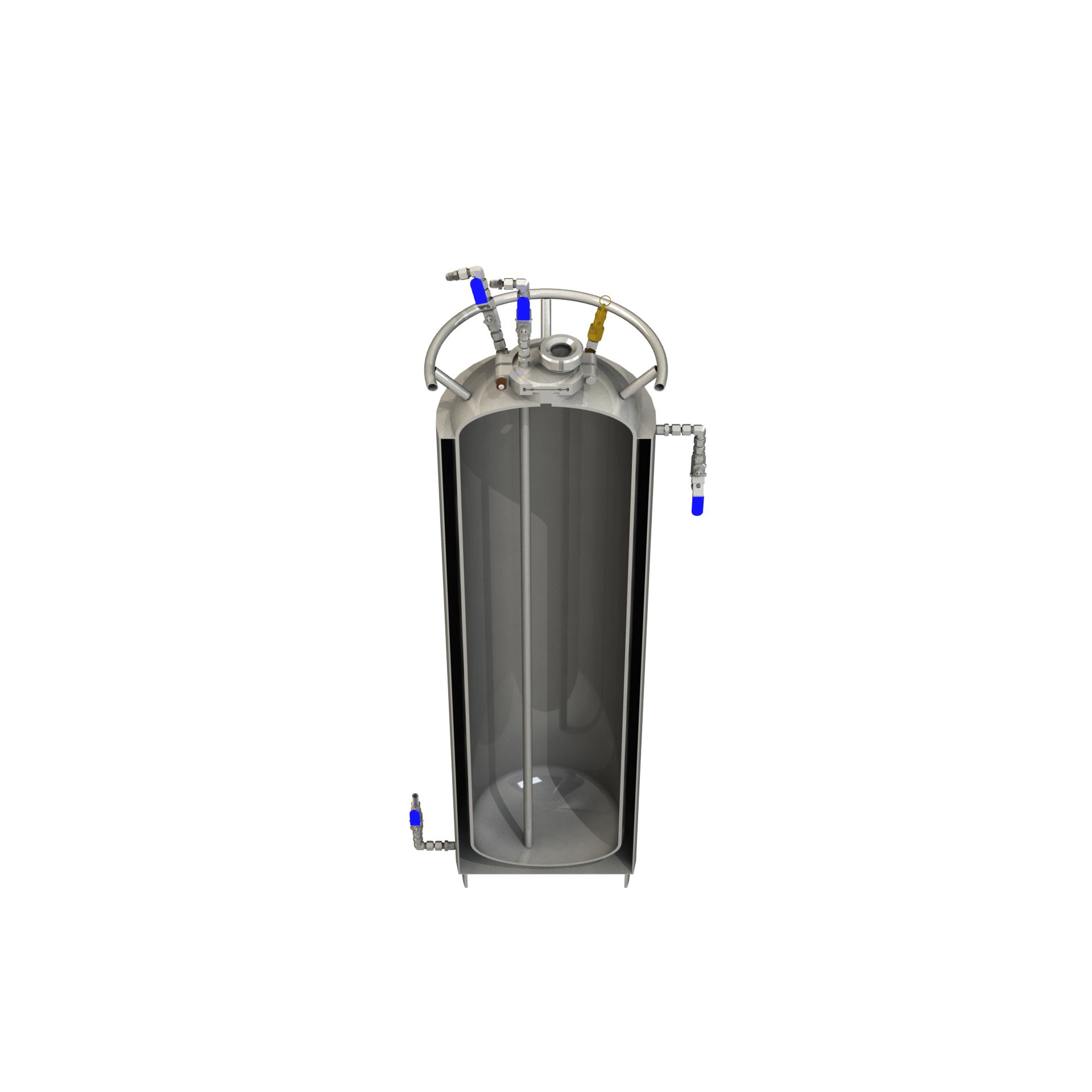

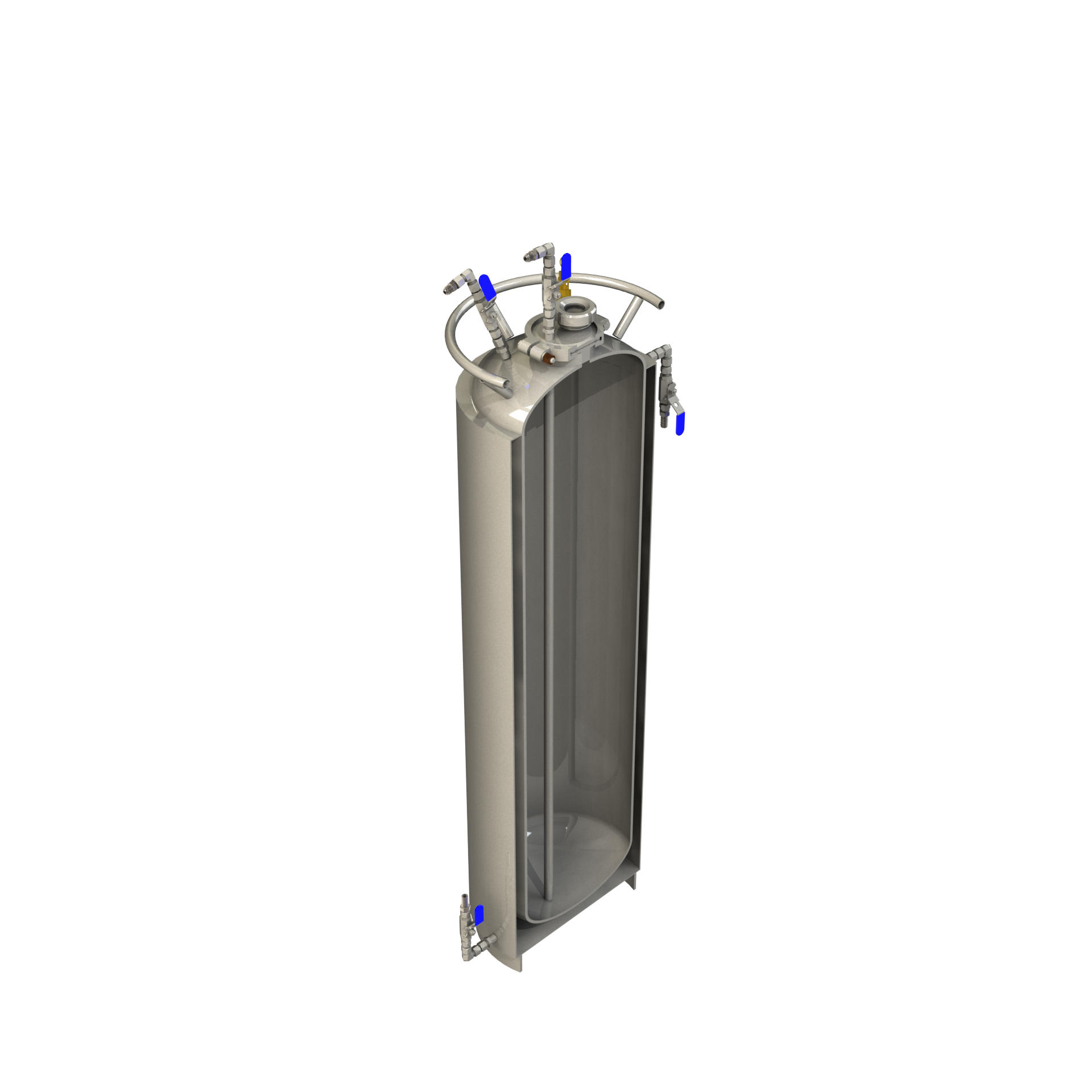

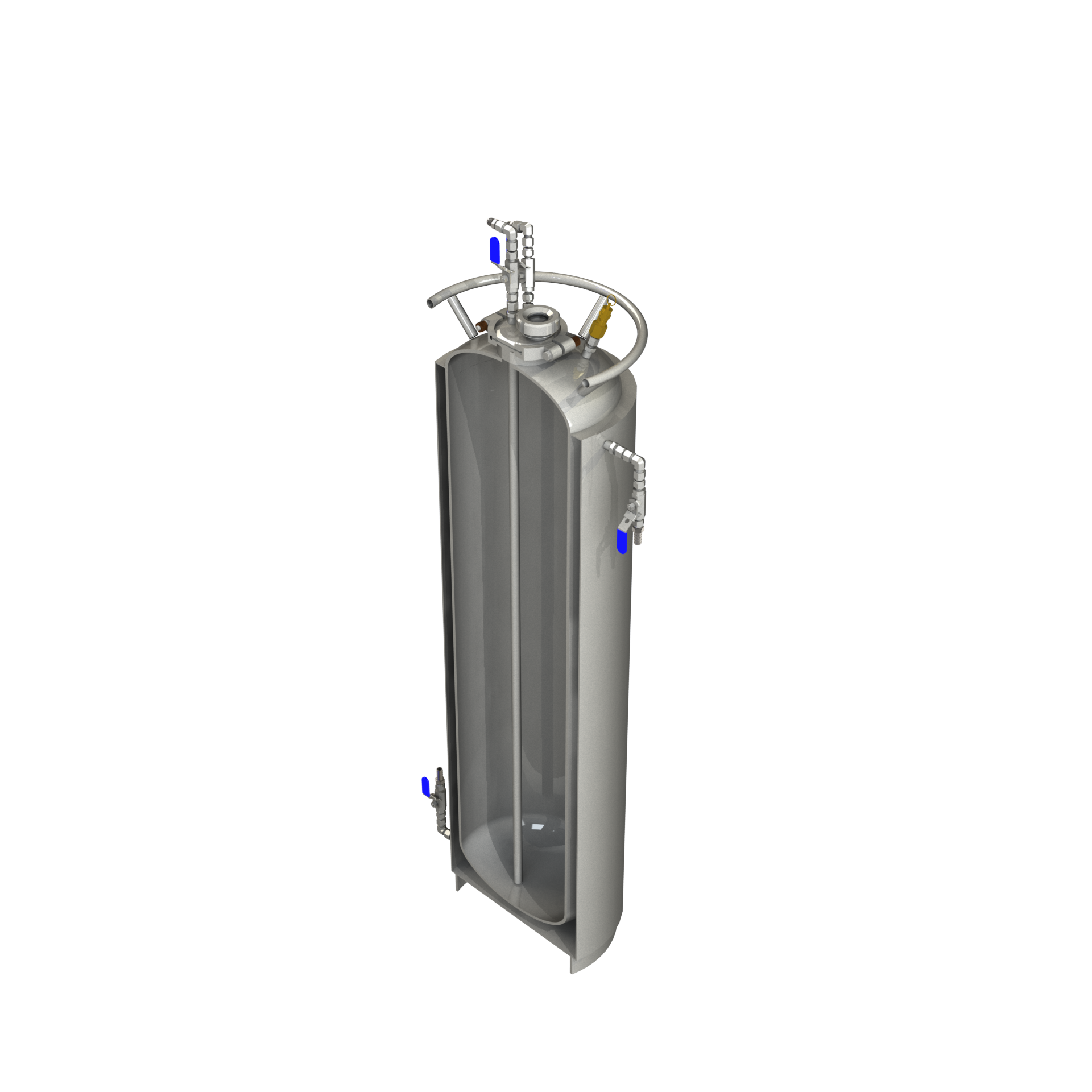

 SECTION VIEW

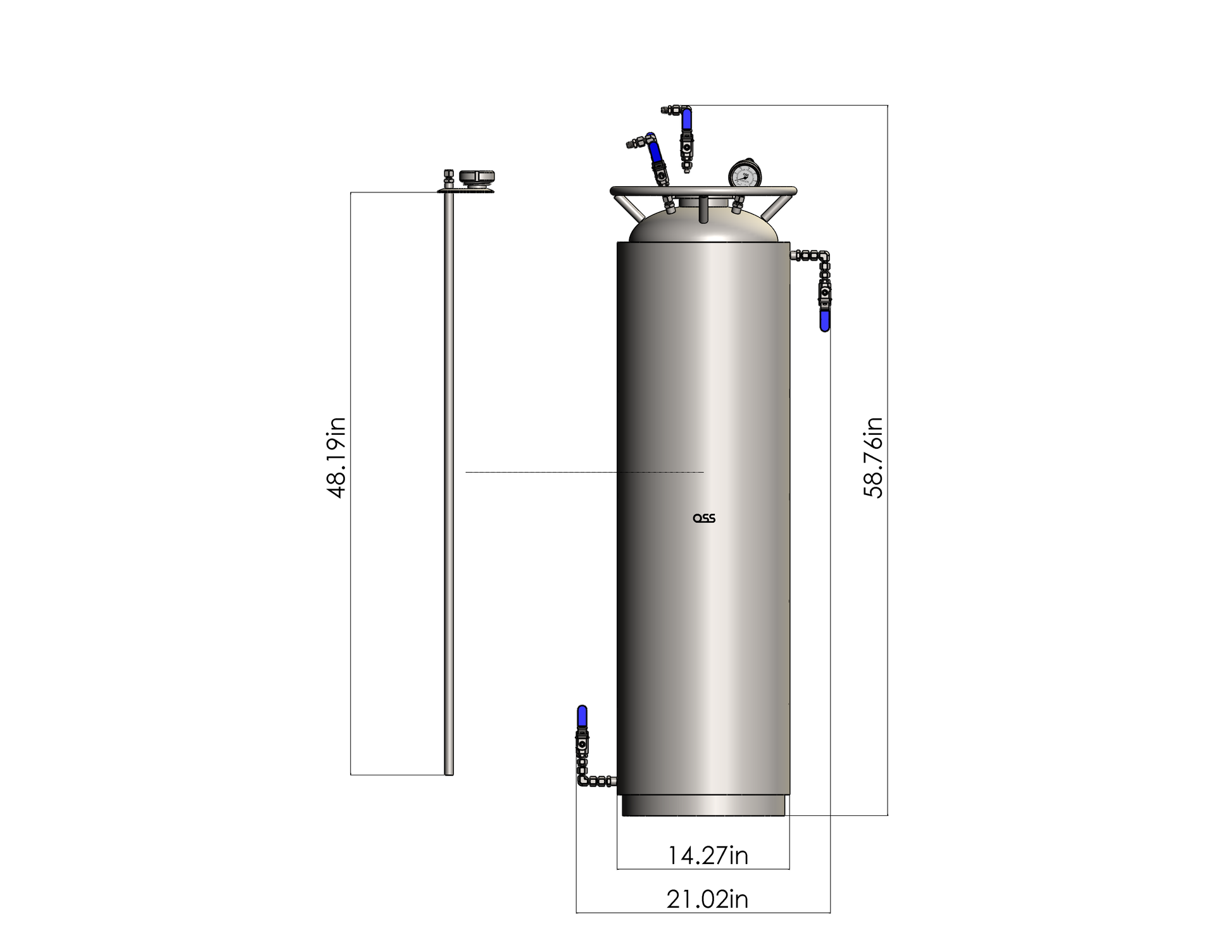

 DIMENSIONS



 TANK VOLUME @ 80% CAPACITY

80LBS 70/30 BUTANE/PROPANE
*Solvent storage should not exceed 80% total volume



WALL THICKNESS
BODY - 6MM
JACKET - 3MM

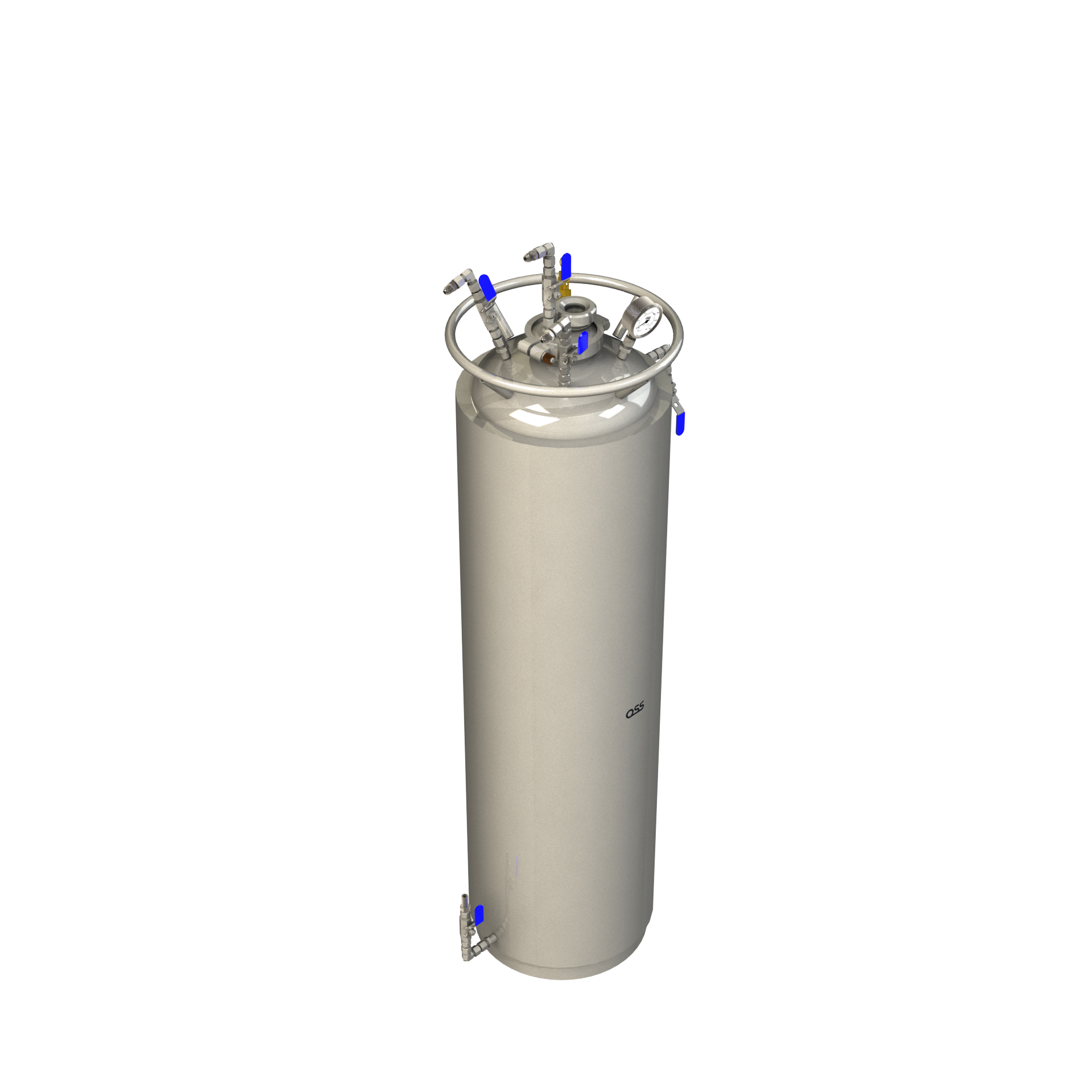

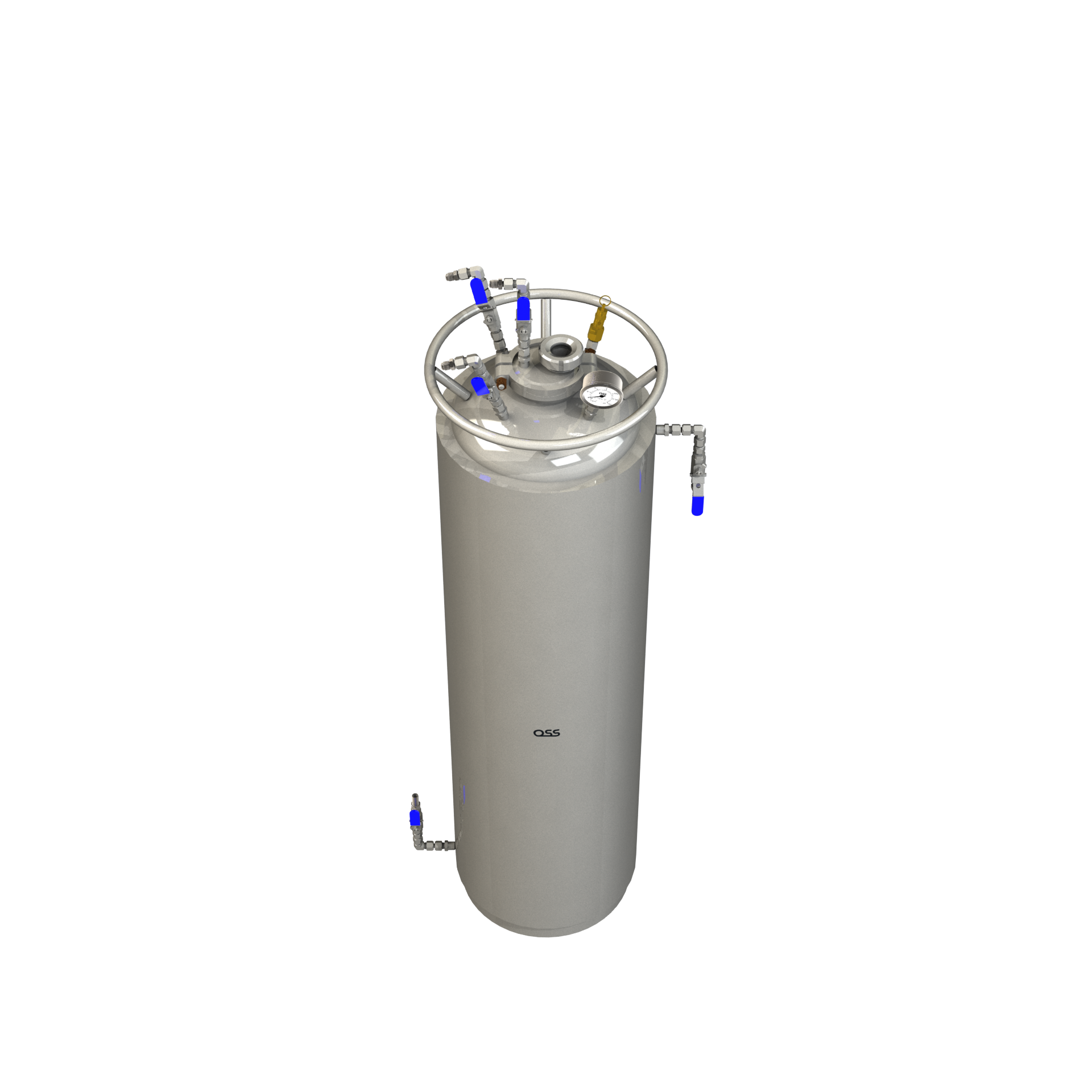

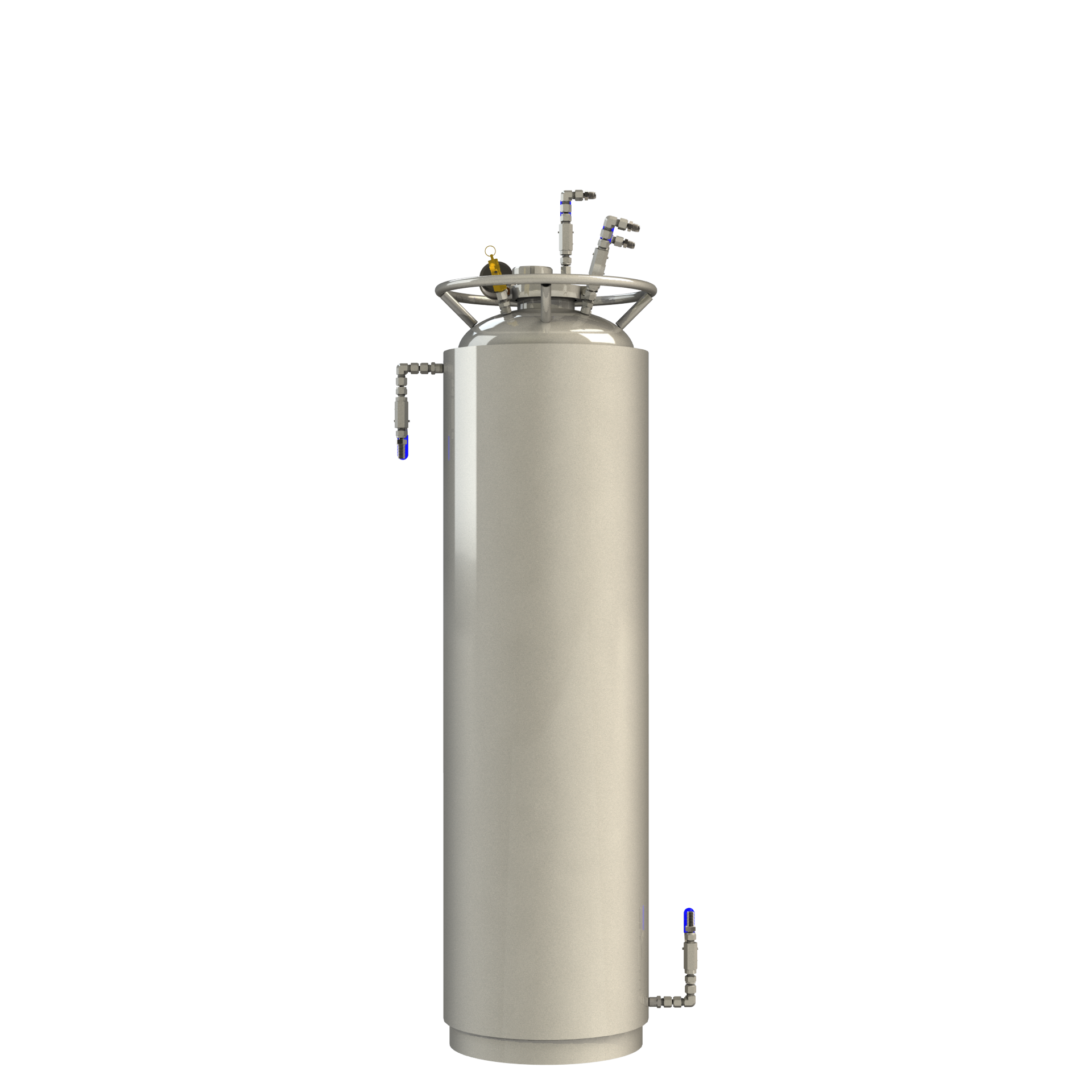

     100LB JACKETED SOLVENT TANK OPTIONS

    BOTTOM MOUNT GAUGE - SIGHTGLASS DIPTUBE

    BOTTOM MOUNT GAUGE - STANDARD DIPTUBE

    BACK MOUNT GAUGE - SIGHTGLASS DIPTUBE

    BACK MOUNT GAUGE - STANDARD DIPTUBE
