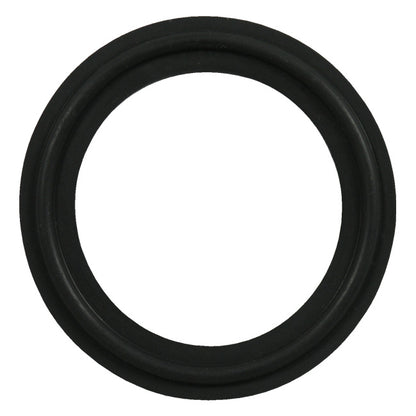

Viton Tri-Clamp Gasket
Viton Tri-Clamp Gasket
Regular price
$ 20.58
Regular price
Sale price
$ 20.58
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Description
Description
Viton Tri-Clamp Gasket
| Temp. Rating: | -30°F to 400°F |
Tri-Clamp® Gasket Sizing
|
|||
| Size | Inside Diameter | Outer Diameter | Bead Diameter |
|---|---|---|---|
| 1/2" | 0.40" (10.2mm) |
0.87" (22mm) |
n/a |
| 3/4" | 0.64" (16.2mm) |
0.87" (22mm) |
n/a |
| 1" | 0.90" (22.9mm) |
2.00" (50.5mm) |
1.71" (43.5mm) |
| 1-1/2" | 1.39" (35.3mm) |
2.00" (50.5mm) |
1.71" (43.5mm) |
| 2" | 1.88" (47.8mm) |
2.52" (64mm) |
2.22" (56.5mm) |
| 2-1/2" | 2.39" (60.5mm) |
3.05" (77.5mm) |
2.78" (70.5mm) |
| 3" | 2.88" (73.1mm) |
3.58" (91mm) |
3.29" (83.5mm) |
| 4" | 3.85" (97.7mm) |
4.67" (119mm) |
4.33" (110mm) |
| 5" | 4.86" (123.5mm) |
5.68" (144.2mm) |
5.29" (134.3mm) |
| 6" | 5.80" (147.2mm) |
6.57" (167mm) |
6.16" (156.5mm) |
| 8" | 7.80" (198mm) |
8.56" (217.4mm) |
8.15" (207mm) |
| 10" | 9.74" (247.4mm) |
10.55" (268mm) |
10.12" (257mm) |
|
12" Flanged |
11.74" (298.2mm) |
12.66" (321.6mm) |
12.17" (309mm) |
