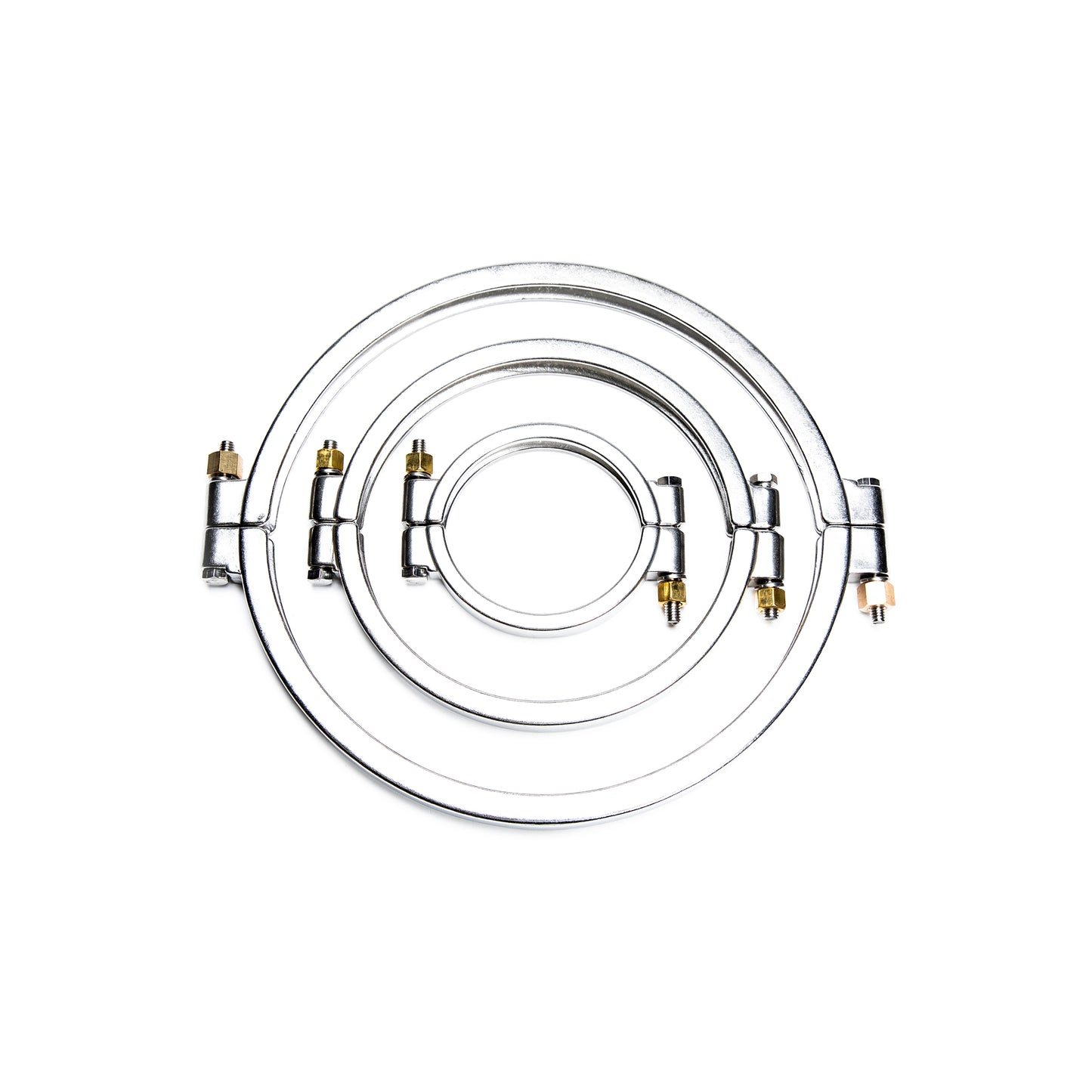

High Pressure Tri Clamps
Description
- Made from SS304 Stainless Steel
- Sizes range from 1" - 1-1/2" inch up to 12 inches
-
Intended for Tri Clamp fitting connection
- Commonly used with Viton or PTFE gaskets
We recommend that all high pressure clamps be tightened as per the table below. **WARNING** DO NOT use FT Lb rated torque wrench!
*Over tightening a high pressure clamp may cause the gasket to fail from over-compression and place too much tension on the clamp threads.
| Size (Tube OD) | Service Pressure Rating at 70°F | Service Pressure Rating at 250°F |
Max Torque |
| 1/2 - 3/4" | 1500 | 1200 | 130 In LBf |
| 1" - 1-1/2" | 1500 | 1200 | 130 In LBf |
| 2" | 1000 | 800 | 130 In LBf |
| 2-1/2" | 1000 | 800 | 130 In LBf |
| 3" | 1000 | 800 | 130 In LBf |
| 4" | 800 | 600 | 200 In LBf |
| 6" | 300 | 200 | 200 In LBf |
| 8" | 250 | 150 | 200 In LBf |
| 10" | 200 | 125 | 200 In LBf |
| 12" | 150 | 100 | 200 In LBf |
High Pressure Tri-Clamp Replacement Parts
|
|
|
|
|
High Pressure Clamp Replacement Bolt
|
